Reinforced Concrete Corbel

• Reinforced concrete of the strength classes C20/25 to C100/115
• Steel grades B500A, B500B, BSt 420 S(A)

• Single-sided corbel
• Concrete cover variable on each side
• Consideration of bond conditions (e.g. for cast-in-place columns)
• Exact definition of the column reinforcement
• Transverse compression can be disabled

• Vertical load (concentrated load)
• Horizontal load
• Loads can be entered with any spacing
• Self-weight can be considered optionally

The calculation is based on a framework model. The regulations of the different National Annexes are taken into account. The framework in this connection is a simplified strut-and-tie model.

 The following verifications are performed:

• Safety against compressive web fracture
• Compressive strain under load
• Required As of the tensile and web reinforcement
• Anchorage and lap lengths of the reinforcement

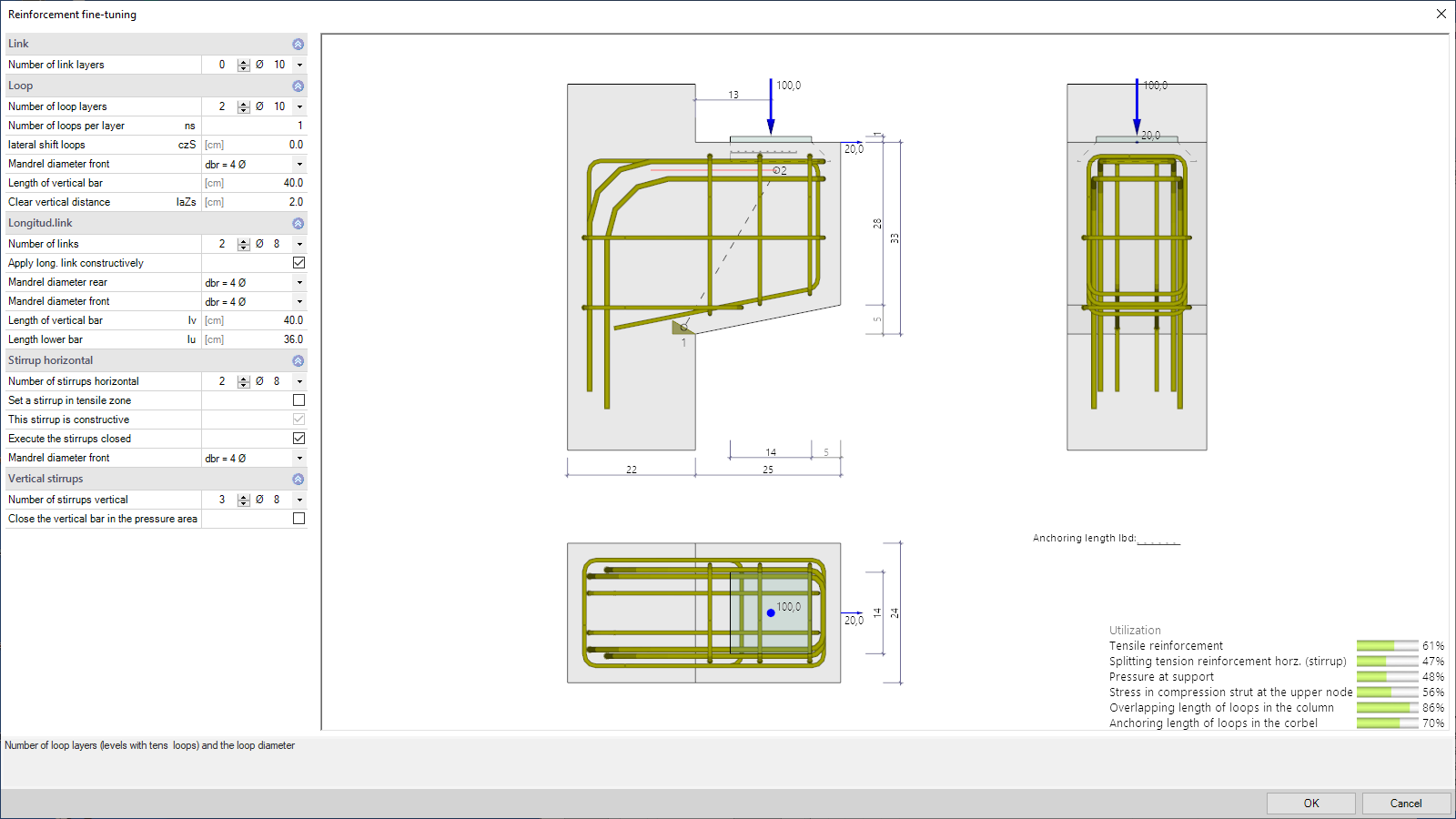

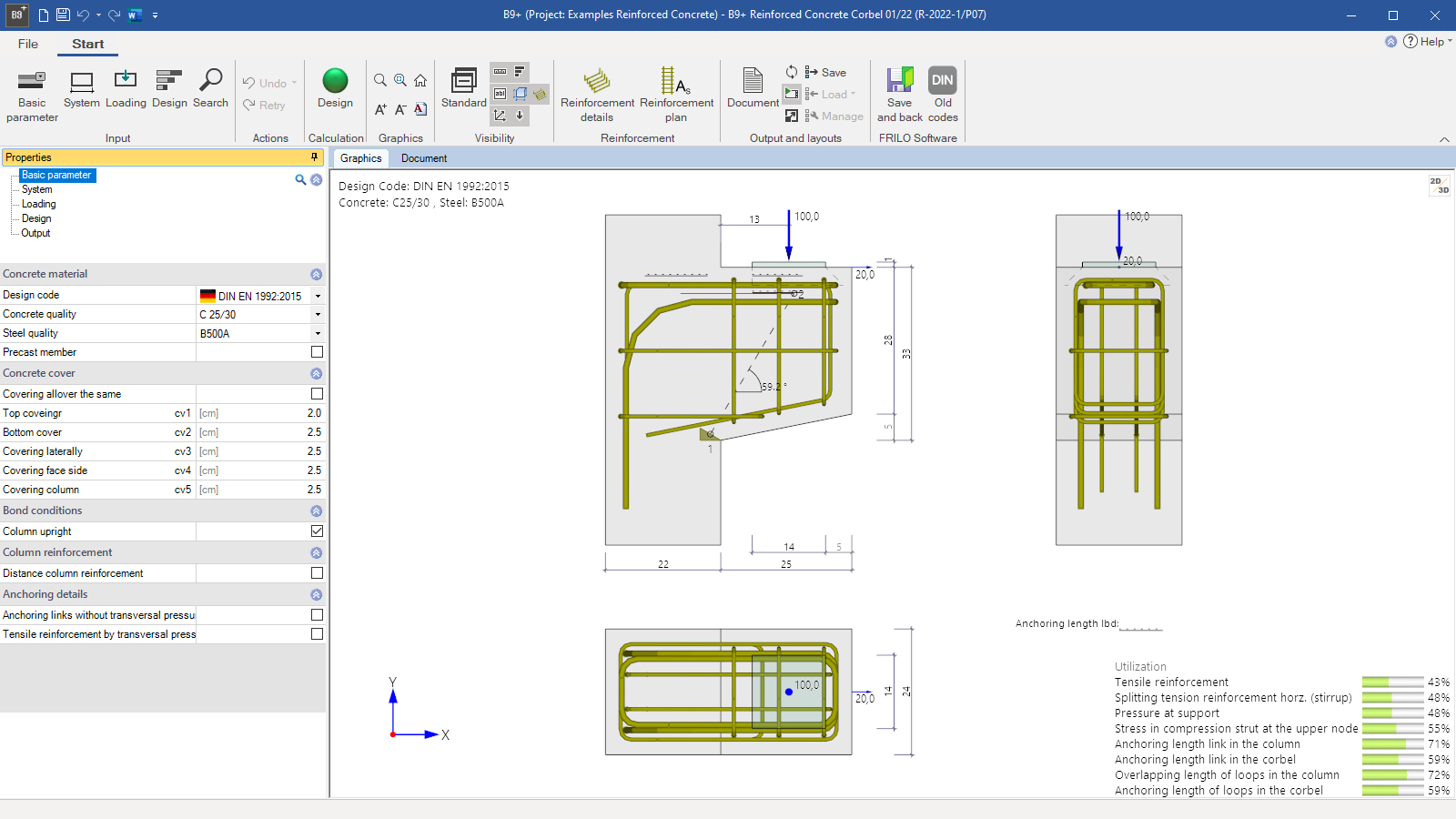

• Internal forces in the corbel section
• Reinforcement dimensions in tabular form

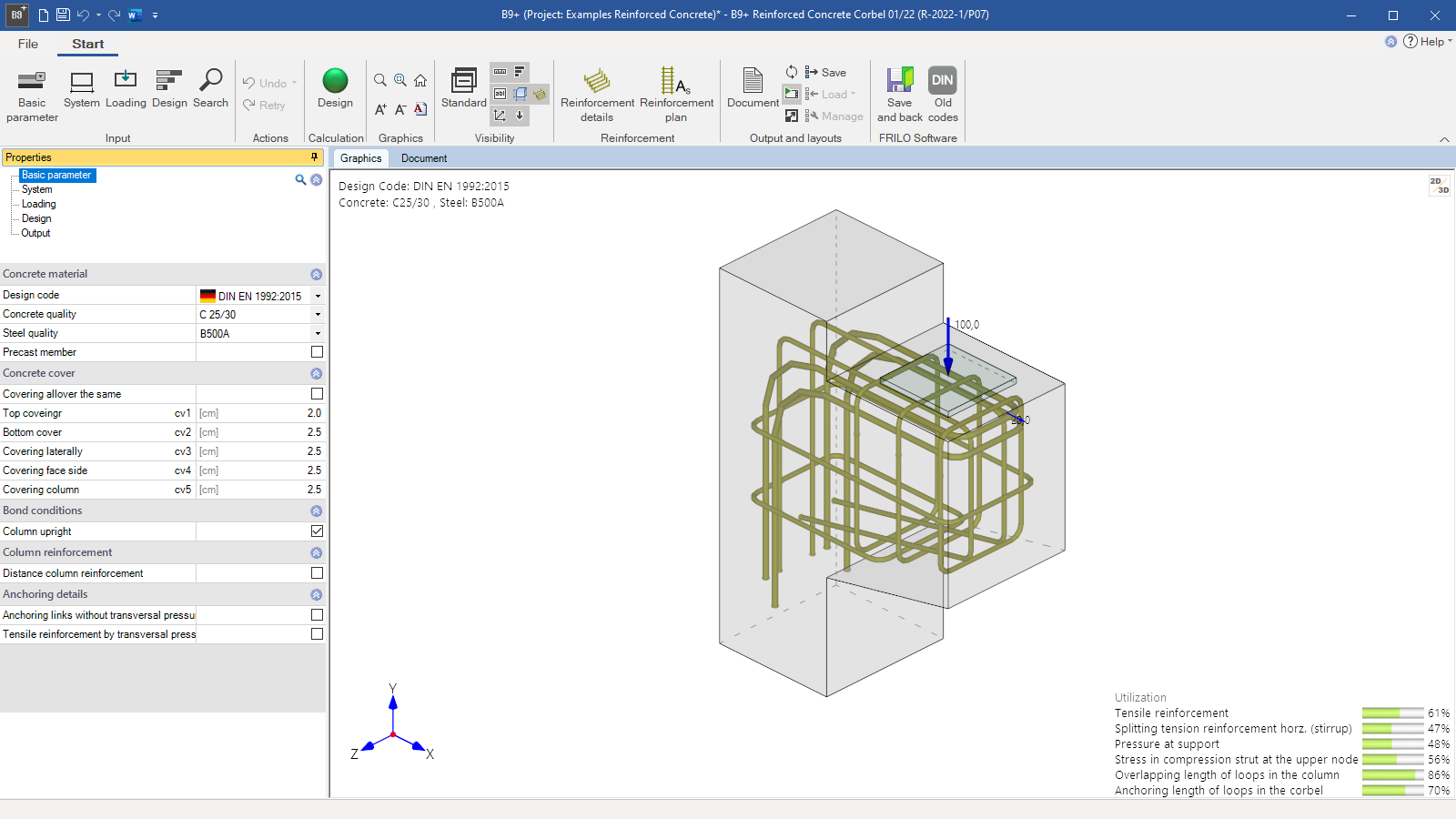

• 3-d graphic

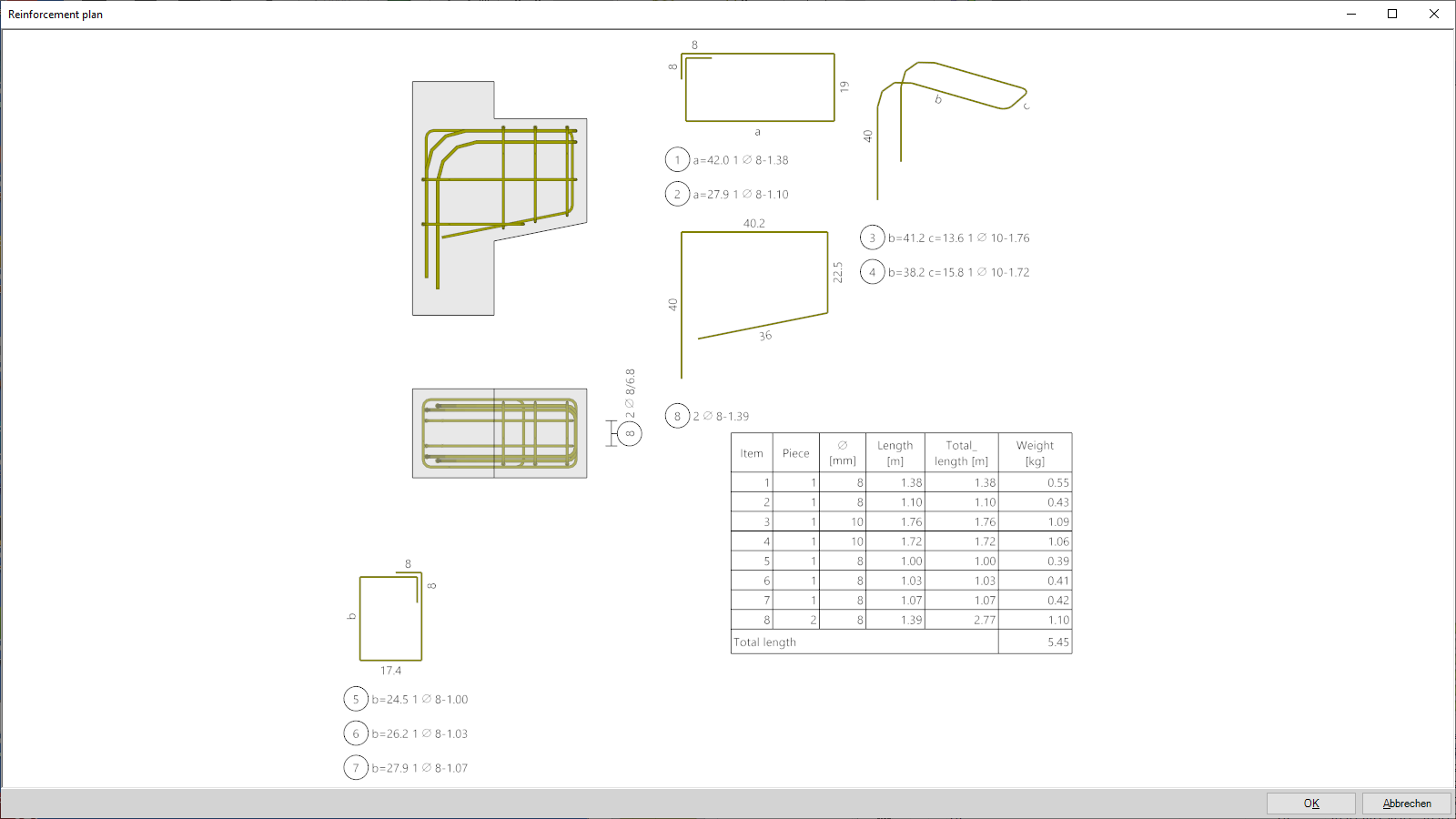

• Reinforcement drawing (optional)

• Frilo XML
