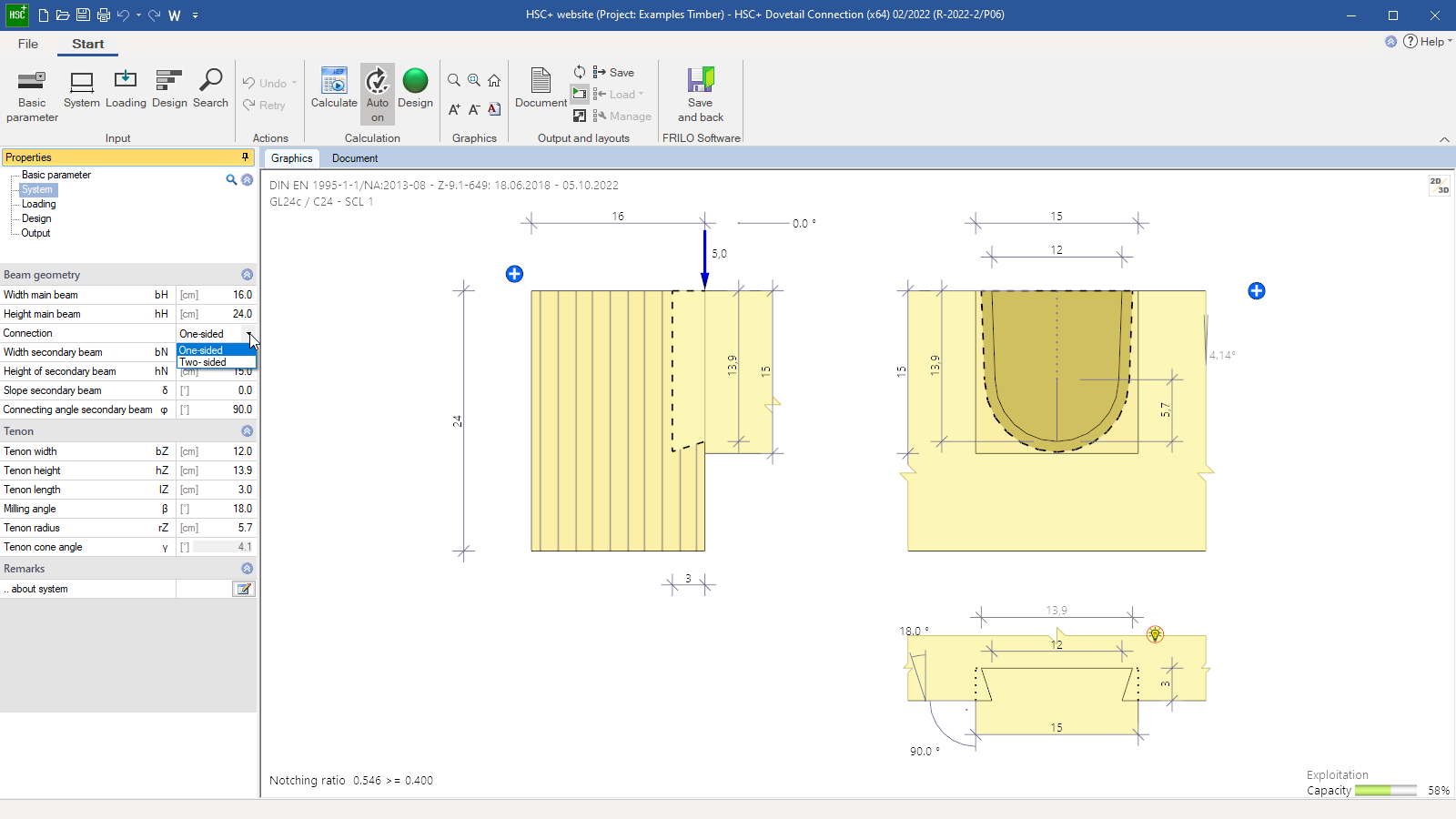

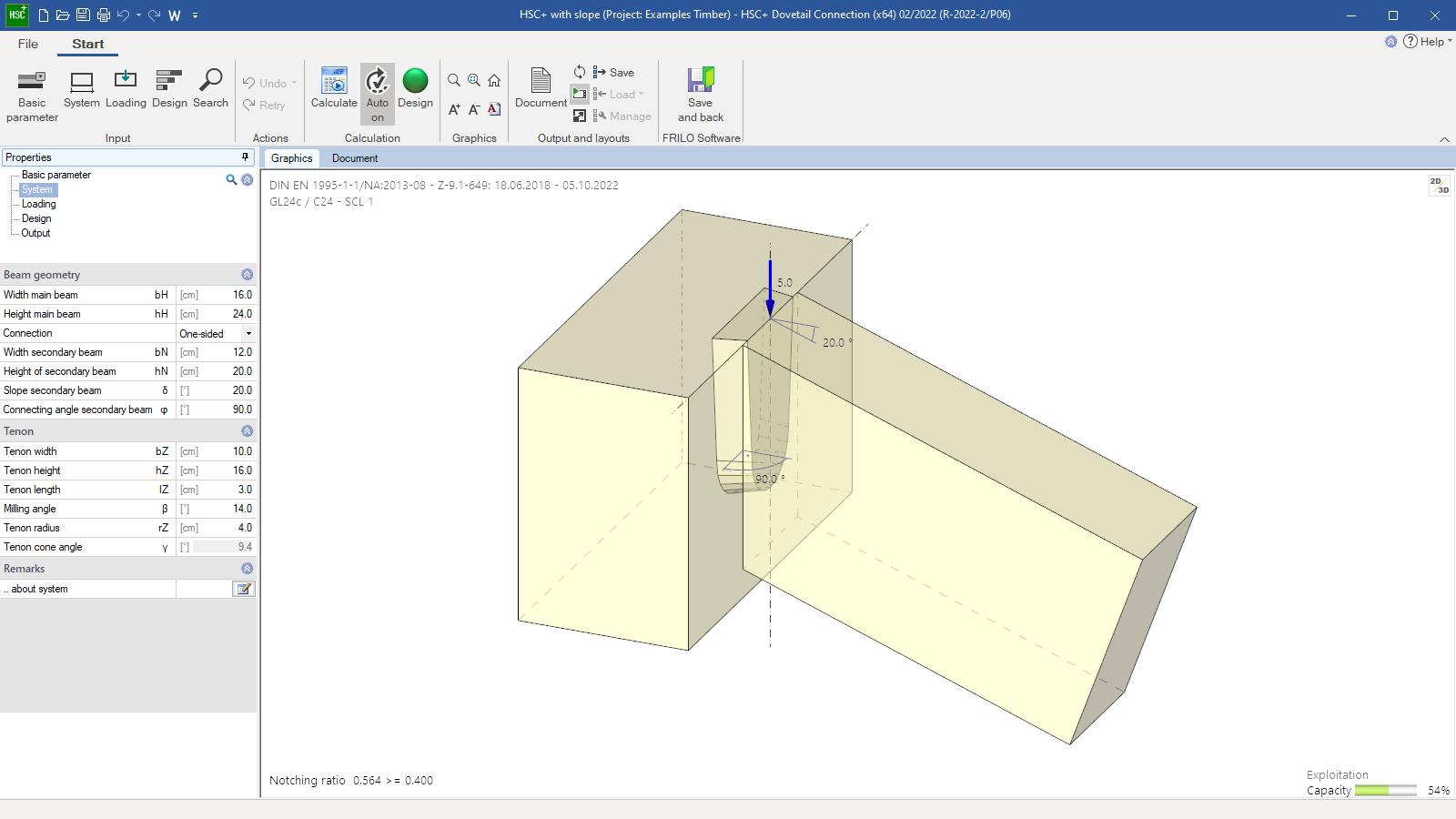

Entry of the structural system with the 3-d view of an inclined secondary glulam beam -

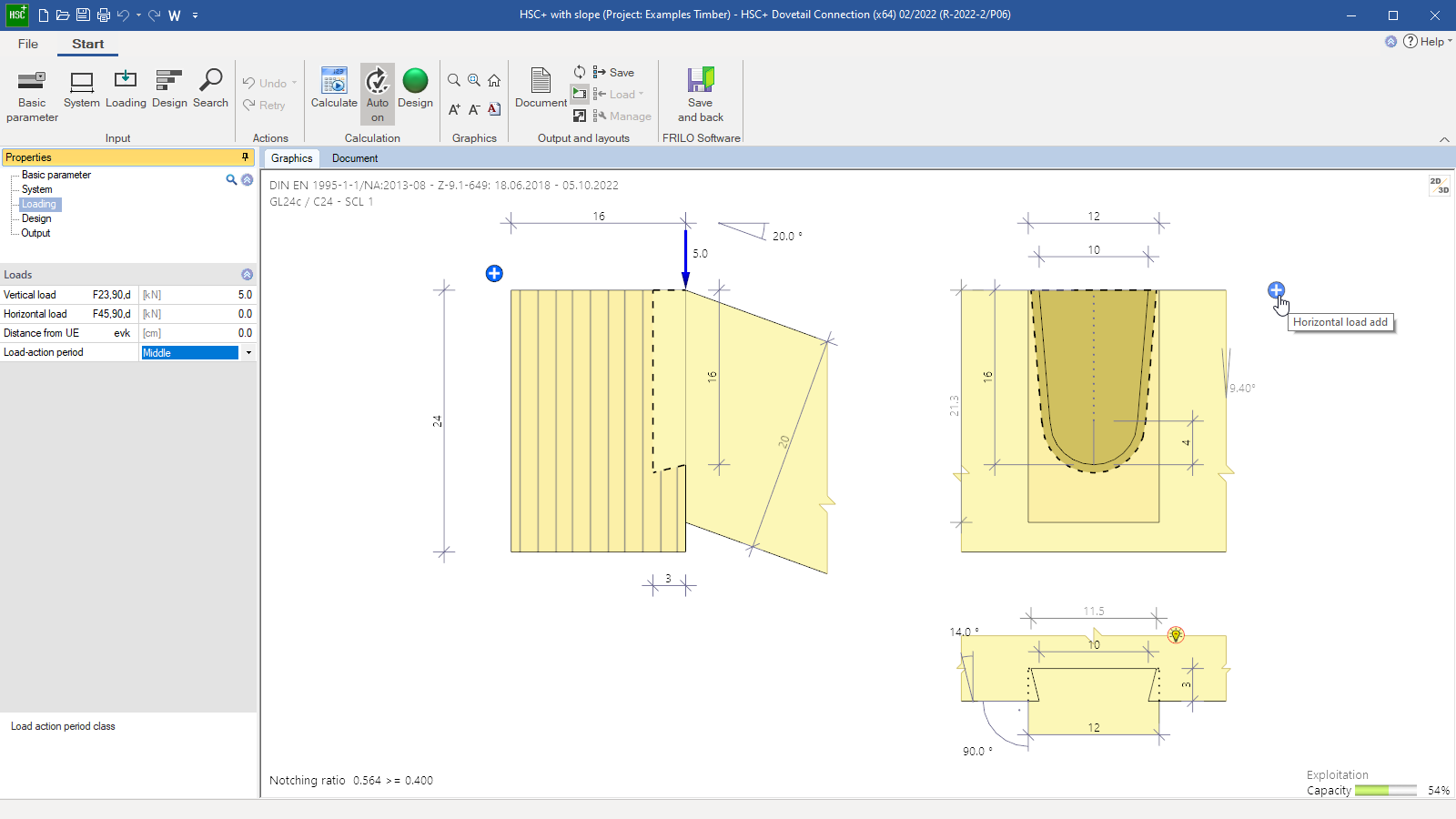

Entry of the loads applying to an inclined secondary beam -

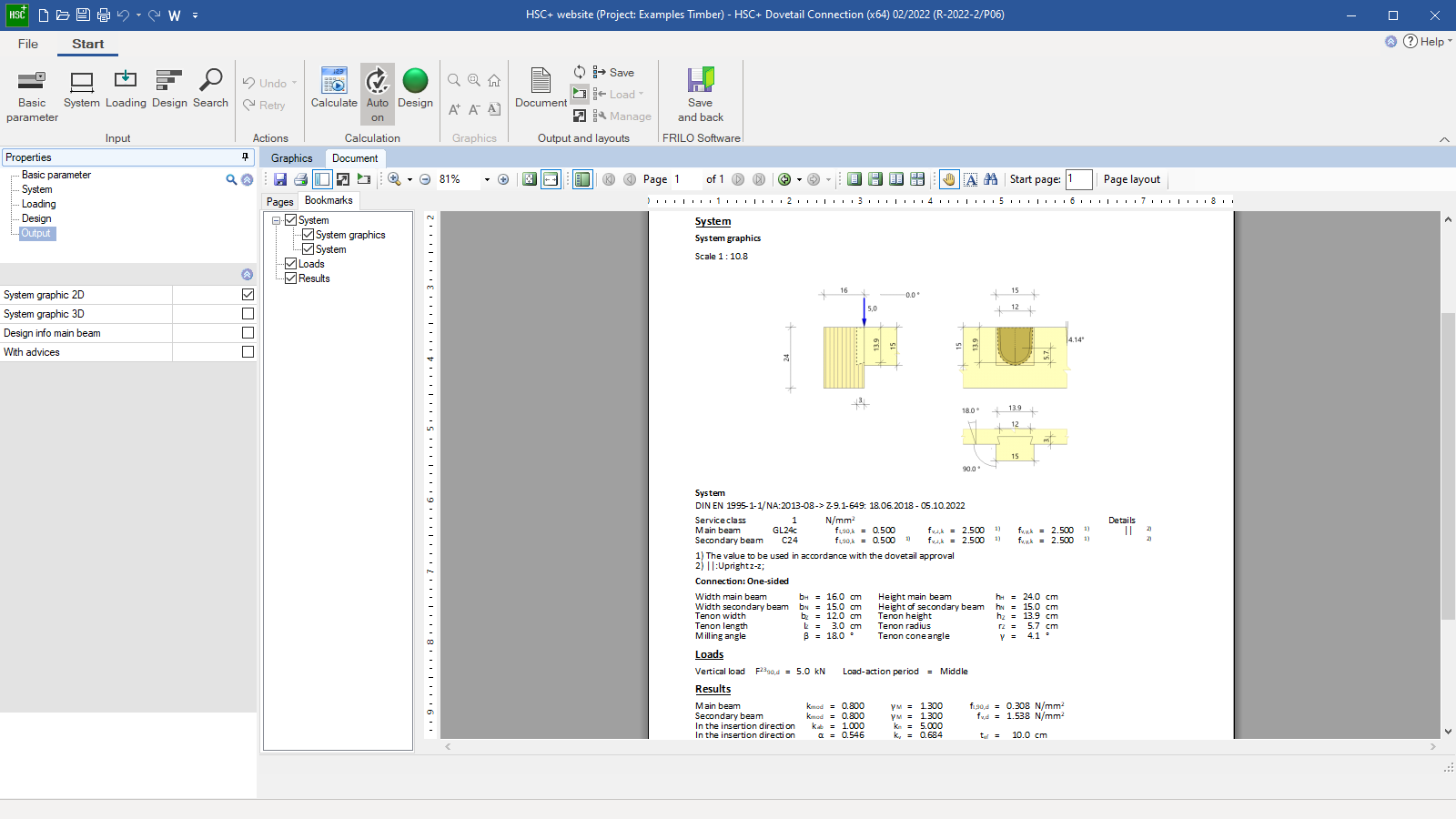

Output document with graphic
Dovetail Connection
HSC+
The program HSC+ is suitable for the design of dovetail joints of timber beams according to the general building inspectorate approval. The secondary beam can be connected at a right angle or with a horizontal or vertical inclination.
One-sided or two-sided connections are available for selection. The available timber materials are softwood, glulam or laminated veneer lumber as per LVL Code of Practice 2019.
Discover now more programs from the section Timber & Roof!
SHOW MOREMaterial
- Softwood of the strength classes C14 to C50
- Glulam of the strength classes GL20c/h to GL32c/h
- Laminated veneer lumber LVL 22 C to LVL 80 P
Structural system
- Main beam
- Connection
- Secondary beam
- Tenon
Loads
- Vertical load
- Horizontal load
- Distance of the horizontal load to the top edge of the secondary beam
- Duration of load
Design
The program provides for the design according to the currently valid approval Z-9.1-649 in combination with DIN EN 1995-1-1.
Document file formats
- Word
- Printer
Output
User-defined scope.
Timber construction
DIN EN 1995-1-1 in combination with Z-9.1-649
