Line Corbel Wall

Line Corbel Wall

TB-BLW

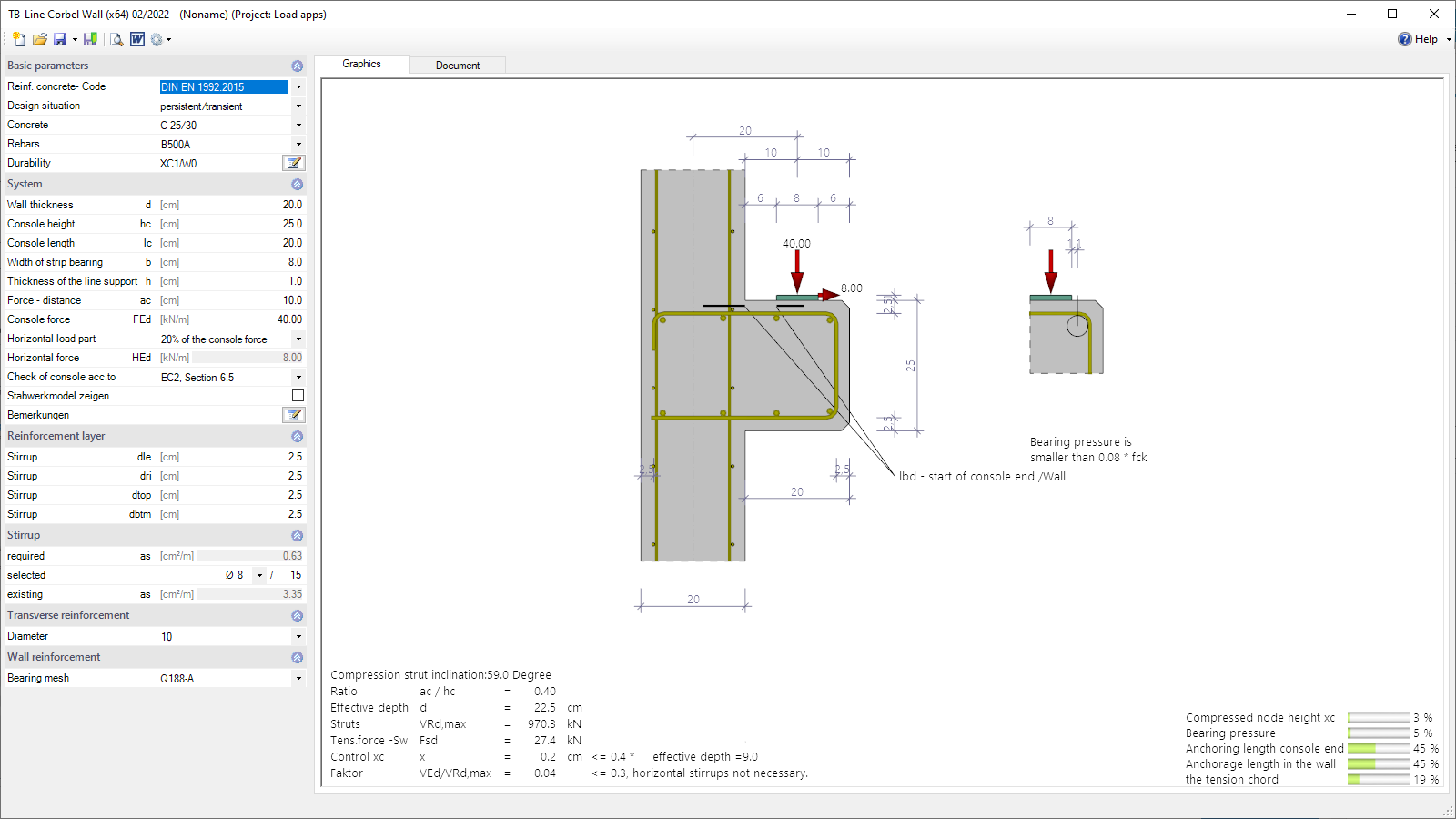

The TB-BLW module can be used to verify line brackets on a wall.

Design Output options Standards

Discover now more programs from the section Toolboxes Reinforced Concrete!

Calculations

Load capacity of the compression strut
Required main tensile reinforcement in the bracket
Reinforcement in the load-reducing components
Verification of the final anchorage of the reinforcement

Document file formats

PDF
Word
Printer

Output

Standard output

Standards

DIN EN 1992
ÖNORM EN 1992

Support resources

Manual

Manual
