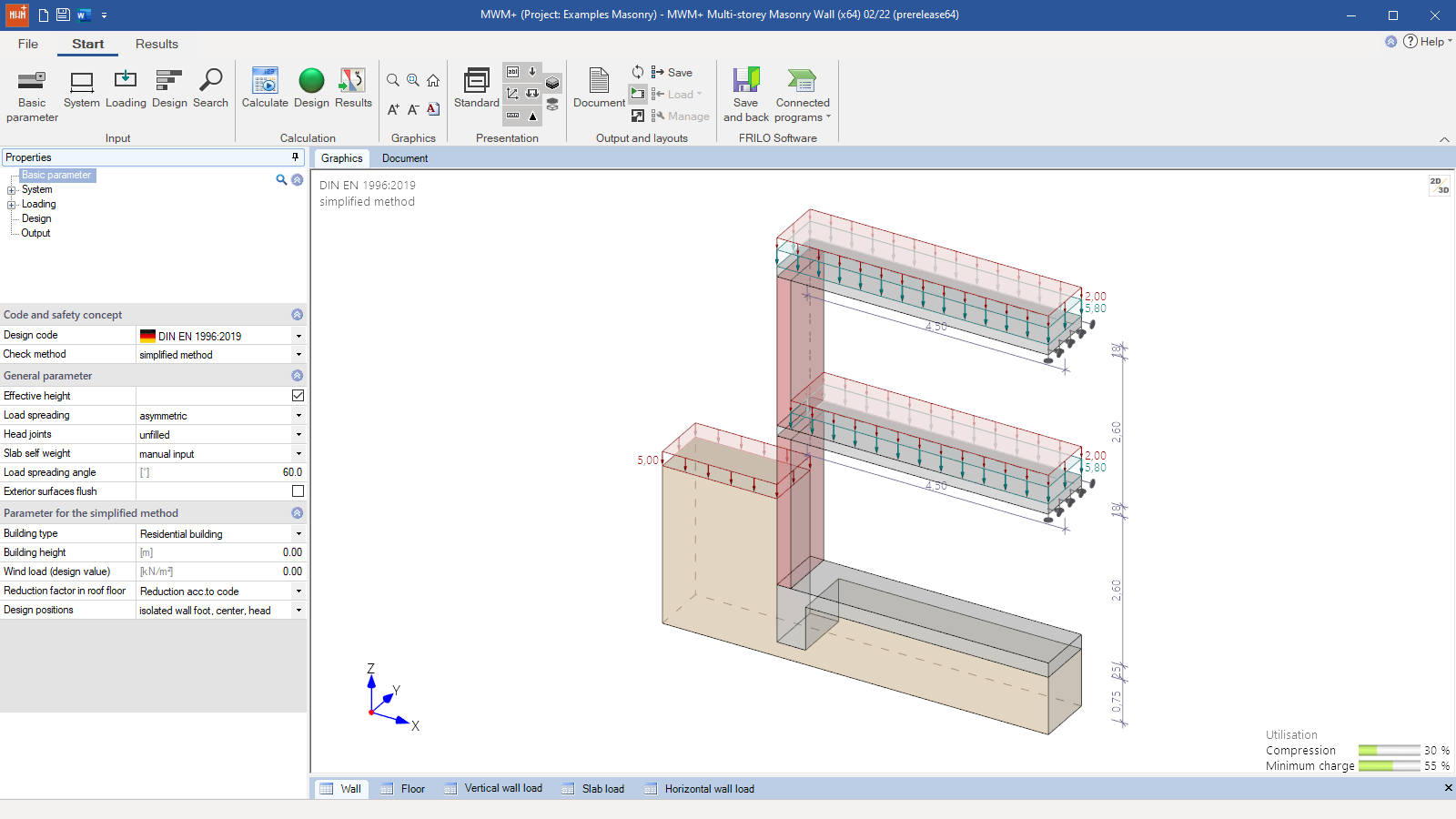

MWM+ user interface, basic parameters -

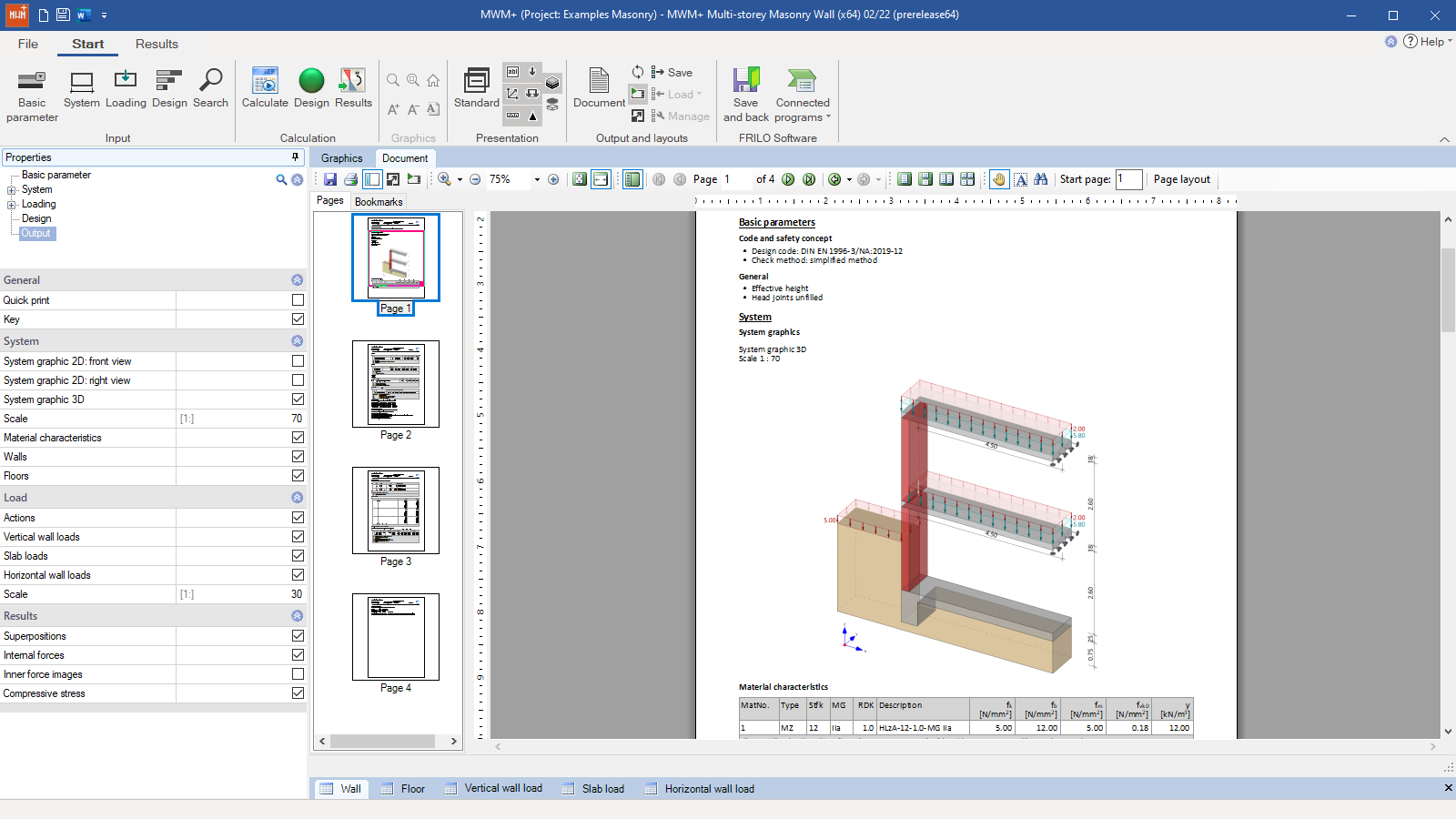

Output document -
Internal forces diagrams in the results view -

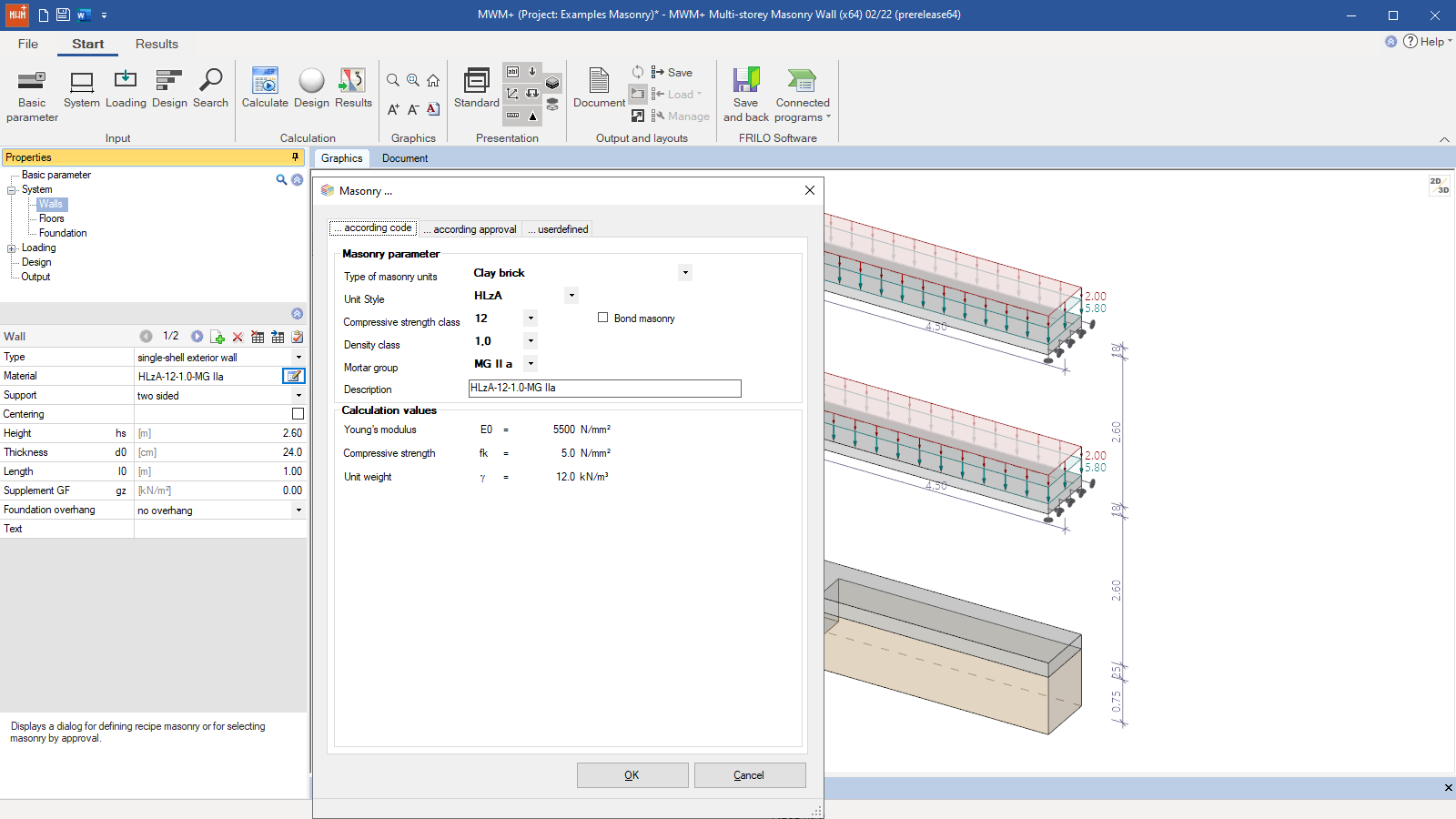

Selection of masonry material - as per relevant standard, as per approval, or user-defined
Multi-storey Masonry Wall
MWM+
MWM+ is a calculation software for structural safety verifications of multi-storey walls. The calculation also includes verifications of basement walls and the determination of the earth pressure, if any, in standard cases.
Discover now more programs from the section Masonry!
SHOW MOREStructural system
Parameters for:
- Walls
- Storey floors slab
- Foundation
Loads
- Vertical wall loads
- Floor slab loads
- Horizontal wall loads
- Earth pressure
Particularities
- Verification of multi-storey walls
- Detailed material definition
- Manufacturer databases for clay bricks and lightweight concrete units:
-
- Wienerberger
- Schlagmann Poroton
- UNIPOR
- Kellerer ZMK Ziegelsysteme
- BV Leichtbeton
- Interactive 3-d graphical user interface
Design
- Simplified method
- More accurate method
- Determination of the utilization factor in the event of fire
Document file formats
- Word
- Printer
Output
- Brief output
- User-defined scope
Transfer options
- Reinforced Raft Foundation FDR+
- Strip foundation FDS+
- Masonry Design MWX+
- Masonry Basement Wall MWK+
Standards
- EN 1996-1-1/EN 1996-3 in combination with the National Annexes (Germany, Austria, United Kingdom, Czech Republic, Netherlands, Belgium, Poland)
- DIN EN 1996-1-2
- DIN 1053-1:1996-11 (2014, global safety concept)
- DIN 1053-100:2007-09 (partial safety concept)
