RSX

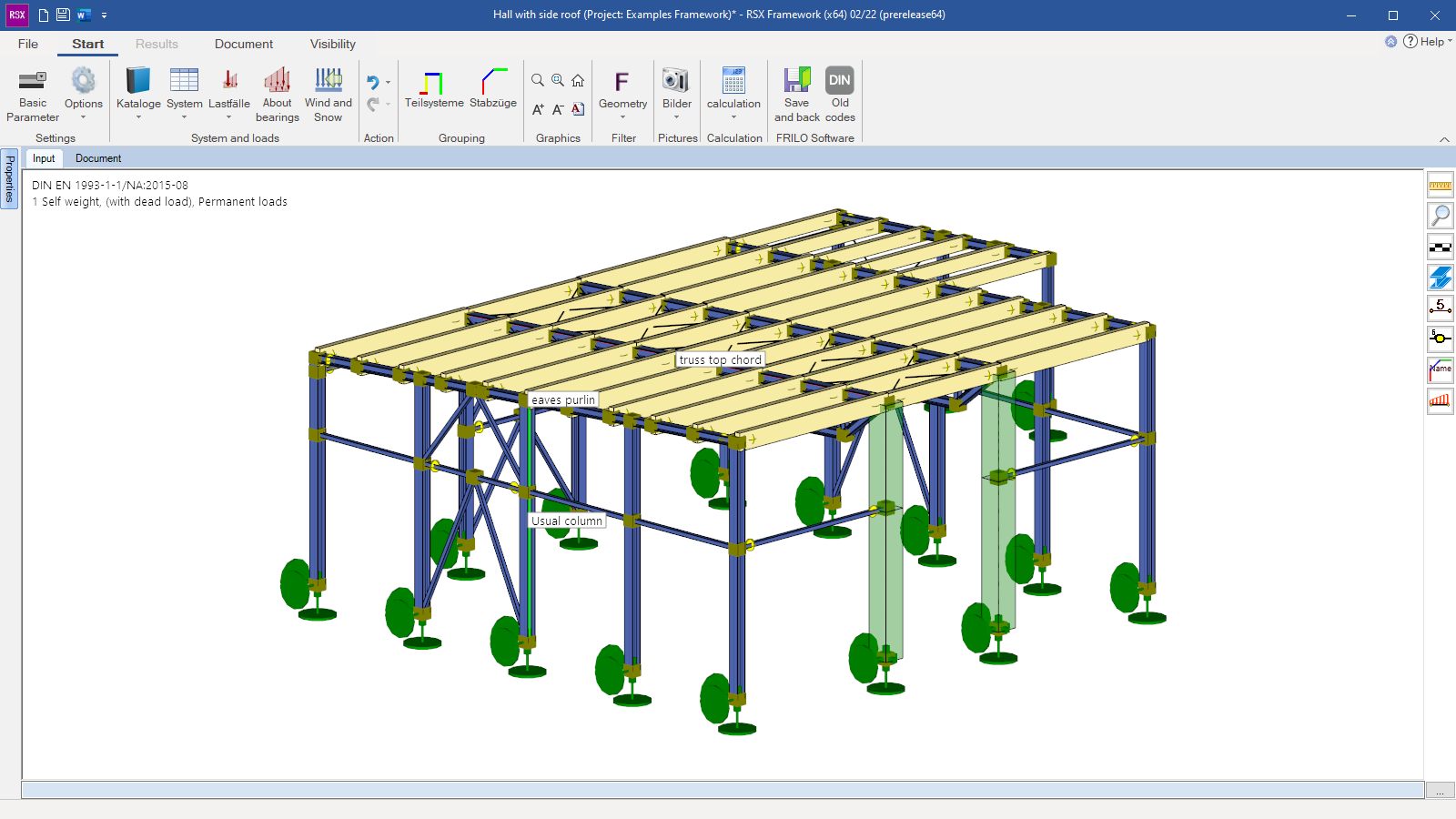

The RSX program is used to calculate the cutting forces and support forces for general bar-shaped load-bearing structures as 2D or, optionally, 3D systems. The graphical input with templates and wizards quickly provides a calculable system. The initial values for a design for steel, timber, reinforced concrete or aluminum are provided with the fully automatic superposition. Eigenvalues and eigenmodes can be calculated for dynamic investigations. The scope of performance depends on the purchased add-ons.

to the shop

Discover more products from the FRILO portfolio now!

SHOW MORE
Material
  • Steel
  • Timber
  • Reinforced concrete
  • Aluminum
  • User-defined material
Input

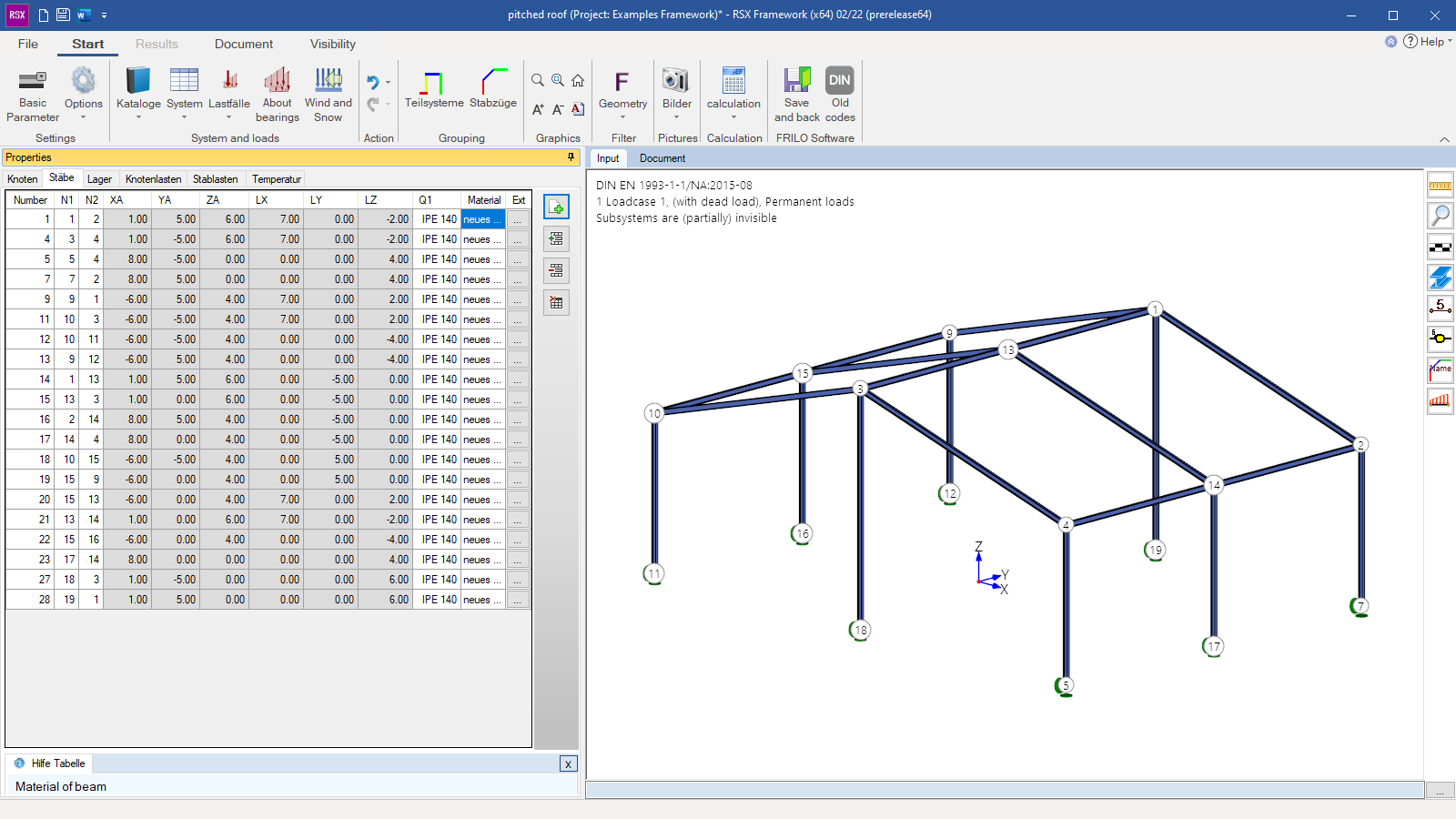

  • The system can be entered either interactively via the graphical user interface and/or by entering the data in tables
  • Marking of several objects for joint editing
  • Undo/Redo to undo or restore any user action
Loads
  • All kinds of concentrated loads, line loads, and trapezoidal loads
  • Area loads on panels (areas limited by members)
  • Load action as a force and/or as a mass
Structuring options
  • Subsystems to group any members
  • Set of members to create line-type components across several members
Cross-sections
  • Standard steel shapes from the cross-section library
  • General steel sections from the Q3 program
  • User-defined cross-sections via structural values or geometric data
Steel
  • Elastic and plastic design
  • Stability calculation on the individual member or on a set of members
  • Transfer of members and sets of members with all loads and internal forces to the BTII+ program for stability calculations
Timber
  • General stress analysis
  • Equivalent member verification with specification of the effective lengths for buckling and lateral buckling
Reinforced Concrete
  • Reinforced concrete design with multiple options for the arrangement of the reinforcement
  • Kd method for plane components, optimised for flexural reinforcement
  • Reinforcement distributed over corners for biaxial bending for spatial systems
  • Design for shear force and torsion, also for biaxial shear force
Aluminum
  • Stress analysis
  • Transfer of members and sets of members with all loads and internal forces to the BTII+ program for stability analysis
Text output
  • Detailed control of the output of all results for load cases, superposition and design situations via a general output profile

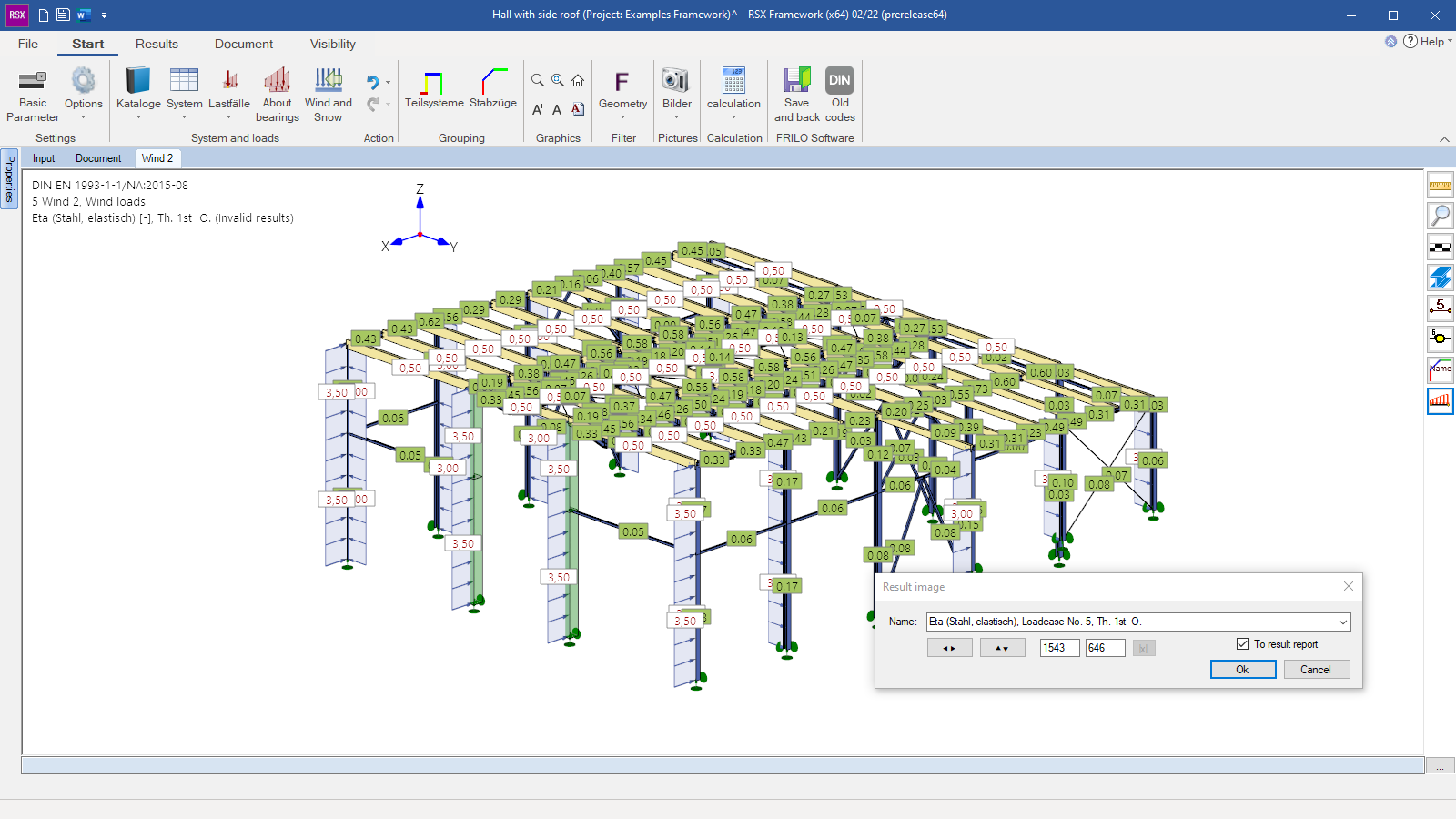

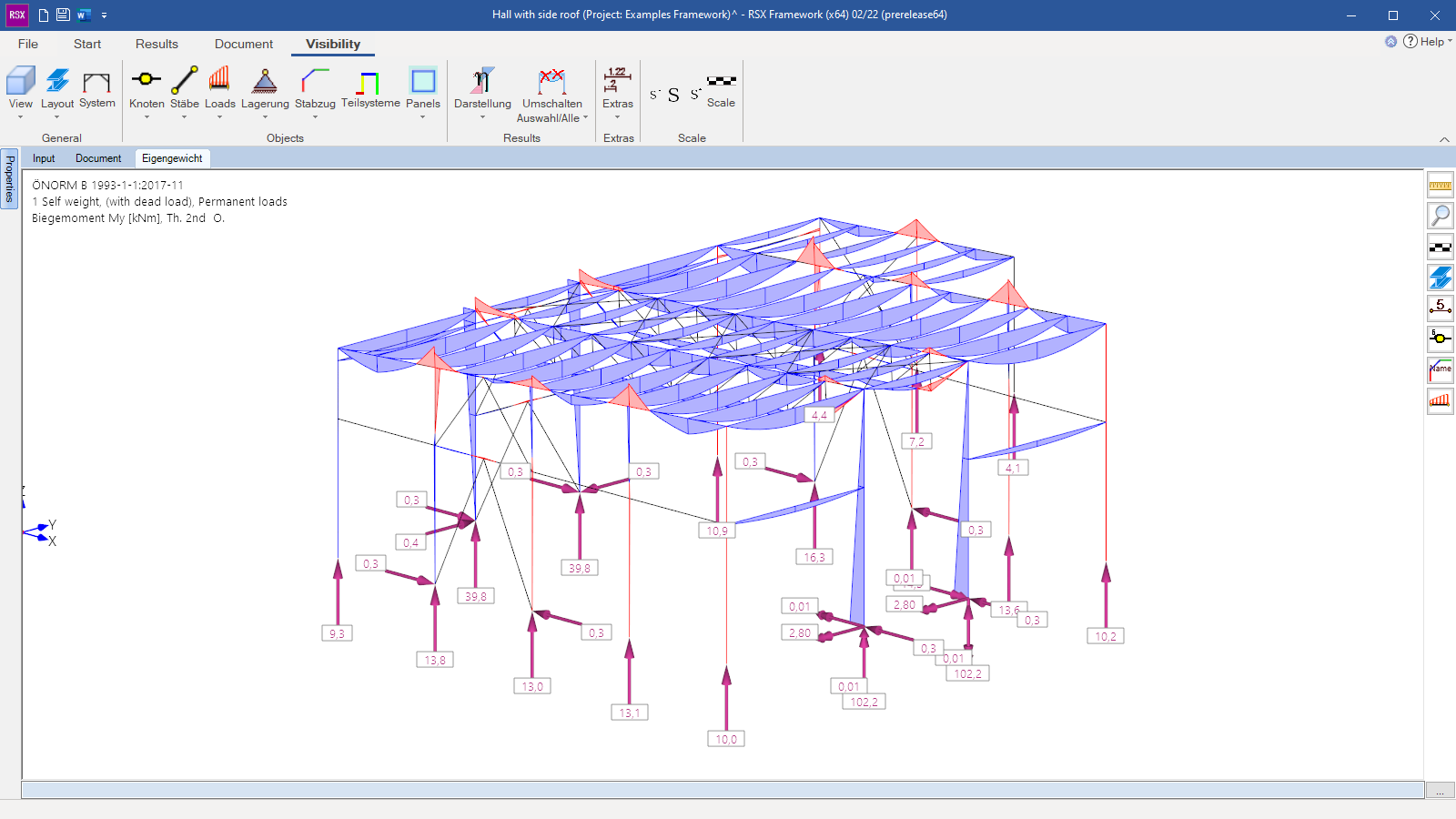

Graphic output
  • Free selection of all kinds of images
  • All results can be represented graphically
  • Result filter adjustable via minimum and maximum values
  • Images are generated via the Snapshot function in accordance with the WYSIWYG principle
  • Images are automatically grouped by content
  • Image management for inserting or hiding images in the document
Document structure
  • All chapters of the document can be hidden/displayed directly in the document
  • Customisation of the document without need to re-create it afterwards
  • Automatic adjustment of the result graphics in the document
Layout
  • The structure and the layout of the document can be adjusted via the general FRILO layout.
Transfer from RSX to
  • Lateral Torsional Buckling Analysis BTII+
  • Continuous Beam DLT+
  • Isolated Foundation FD+
  • Fin Plate SFB+
  • Butt Plate Joint SPS+
  • Steel Frame Corner SRE+
  • Verification of Steel Cross-Sections SQN+
  • Steel Angle Connection SWA+
  • Reinforced Concrete Column B5+
  • Timber Truss Joint HO13+
Transfer to RSX
  • Timber Truss FWH+
  • Steel Truss FWS+
  • All roof programs of DACH+
  • Continuous Timber Beam HTM+
  • Continuous Steel Beam STM+
  • Portal Frame S7+
  • Steel Frame STR+
  • Steel Bracing ST12+
Import options
  • From DXF to transfer geometric data.
  • From Excel to transfer nodes and members.
  • Planned for coming versions: data transfer from FRILO BIM Connector®.
Export options
  • Result data as Excel file for further processing of data (maximum values at each bar and maximum values at each node)
  • Word
Normen
RSX-3D | 3D Calculation

The basic module is conceived for the calculation of plane frames. This add-on enhances the modelling to 3D systems.

RSX-M-B | Design of Reinforced Concrete

RSX can be used without defining materials. The basic licence includes the 2D calculation of internal forces and support reactions as well as the automatic superposition. Optionally, a design module for reinforced concrete structures is available.

RSX-M-S | Design of Steel

RSX can be used without defining materials. The basic licence includes the 2D calculation of internal forces and support reactions as well as the automatic superposition. Optionally, a design module for steel (including aluminium) structures is available.

RSX-M-H | Design of Timber

RSX can be used without defining materials. The basic licence includes the 2D calculation of internal forces and support reactions as well as the automatic superposition. Optionally, a design module for timber structures is available.

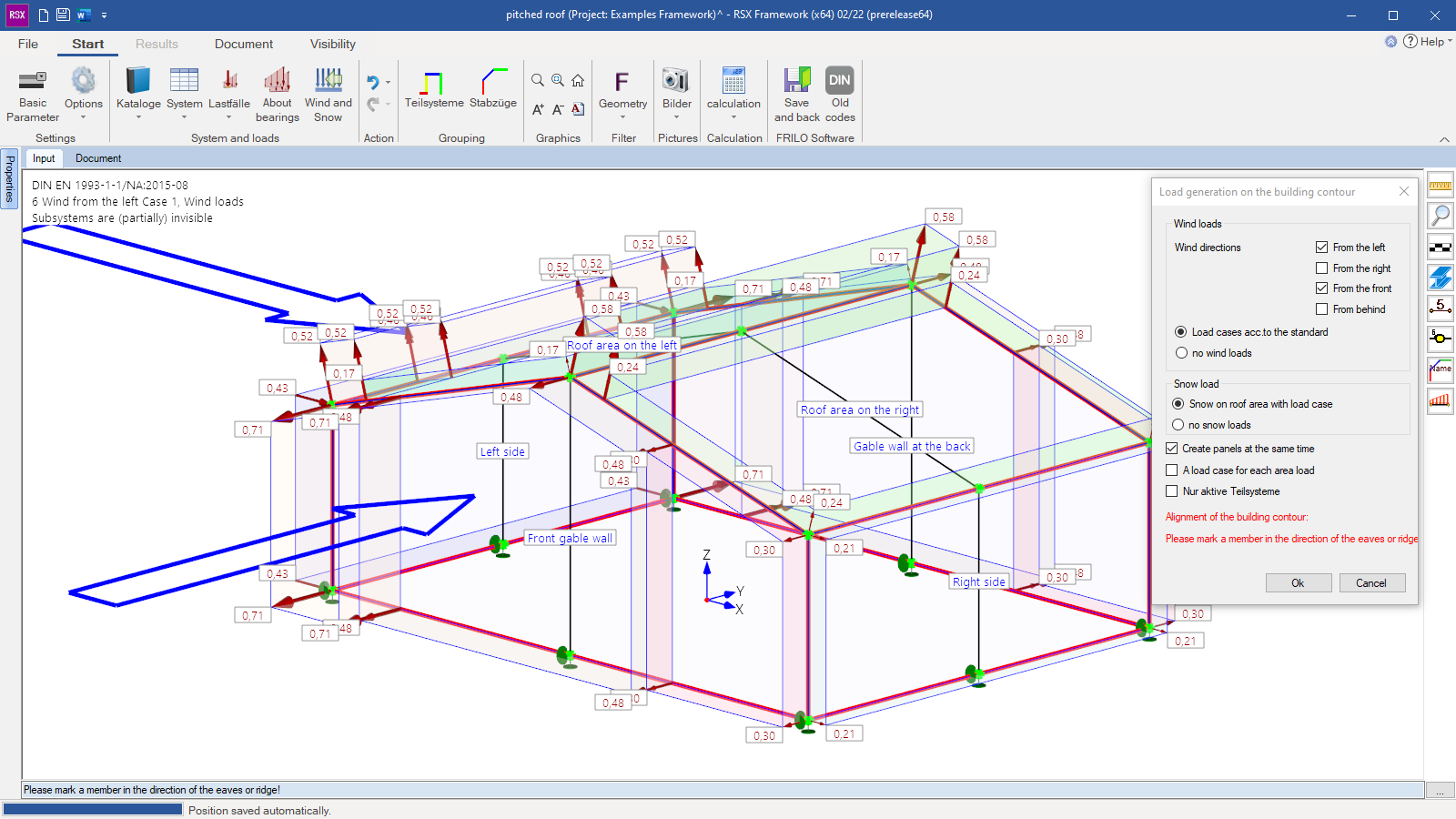

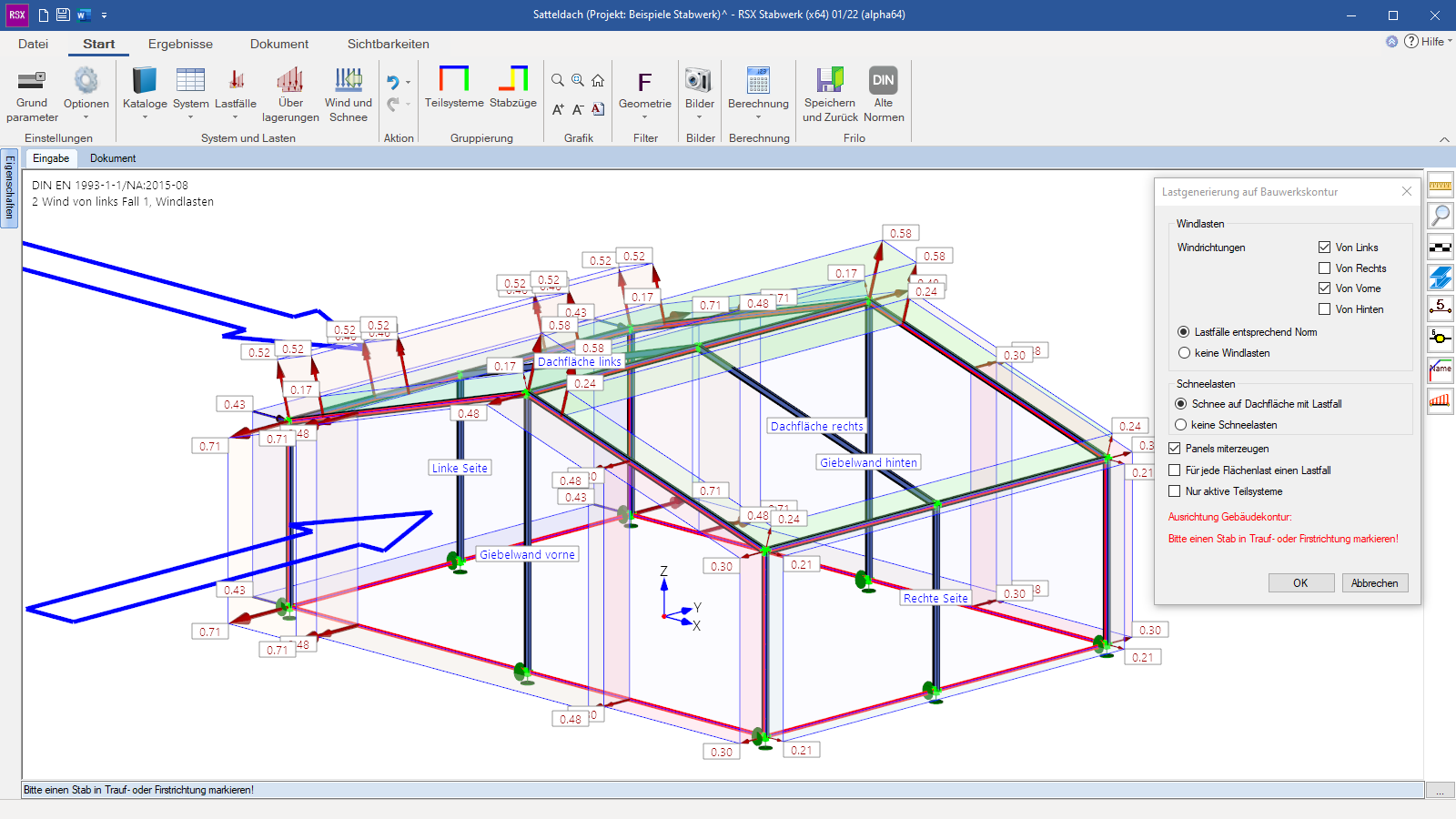

RSX-P | Generation of Loads with Panels
  • Freely definable areas for defining area loads
  • Any assignment of members for load transfer
  • Distribution of the surface loads to the members via an FEM calculation
RSX-ST | Stability Steel
  • Stability verifications for single bars and bar beams
  • The calculation is based on the verifications from the BTII+ program.
  • The licence is automatically available if the BTII+ program is purchased.
RSX-DY | Dynamics

Enables the calculation of resonance frequency and mode shapes for load cases and user-defined superpositions.

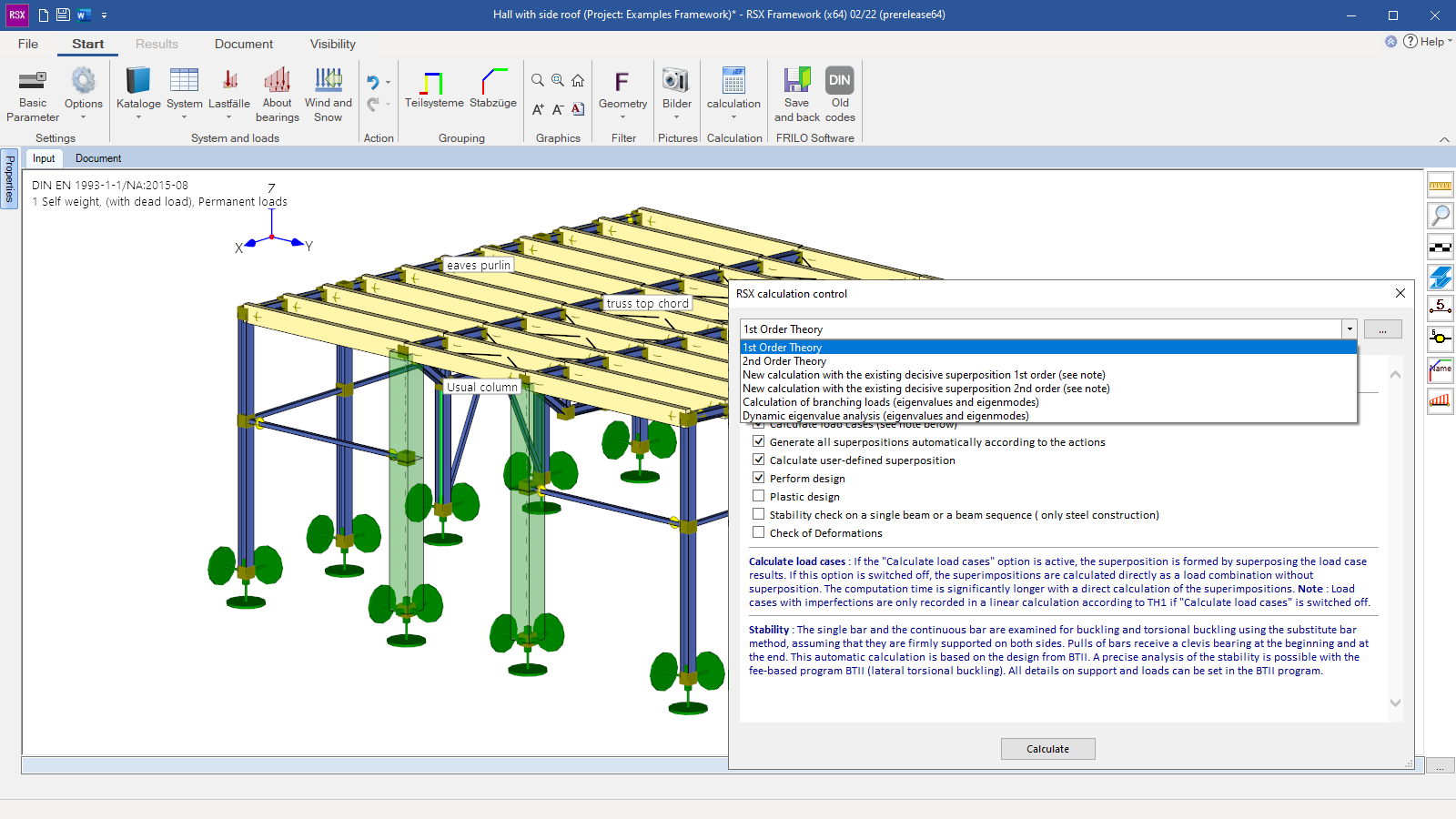

Structural calculation
  • First-order analysis
  • Second-order analysis
  • Possible failure of members or foundations
Dynamics
  • Dynamic analysis of load cases and user-defined superpositions
  • Calculation of eigenvalues and mode shapes
Buckling load
  • Solution of the static eigenvalue problem to determine the ideal limit loads for the stability of the system
  • Calculation of eigenvalues and mode shapes
Superposition
  • Automatic superposition of the load cases
  • Grouping of load cases for concurrent or alternative action
