Home / Products / Toolboxes / Notch Stairs Bottom

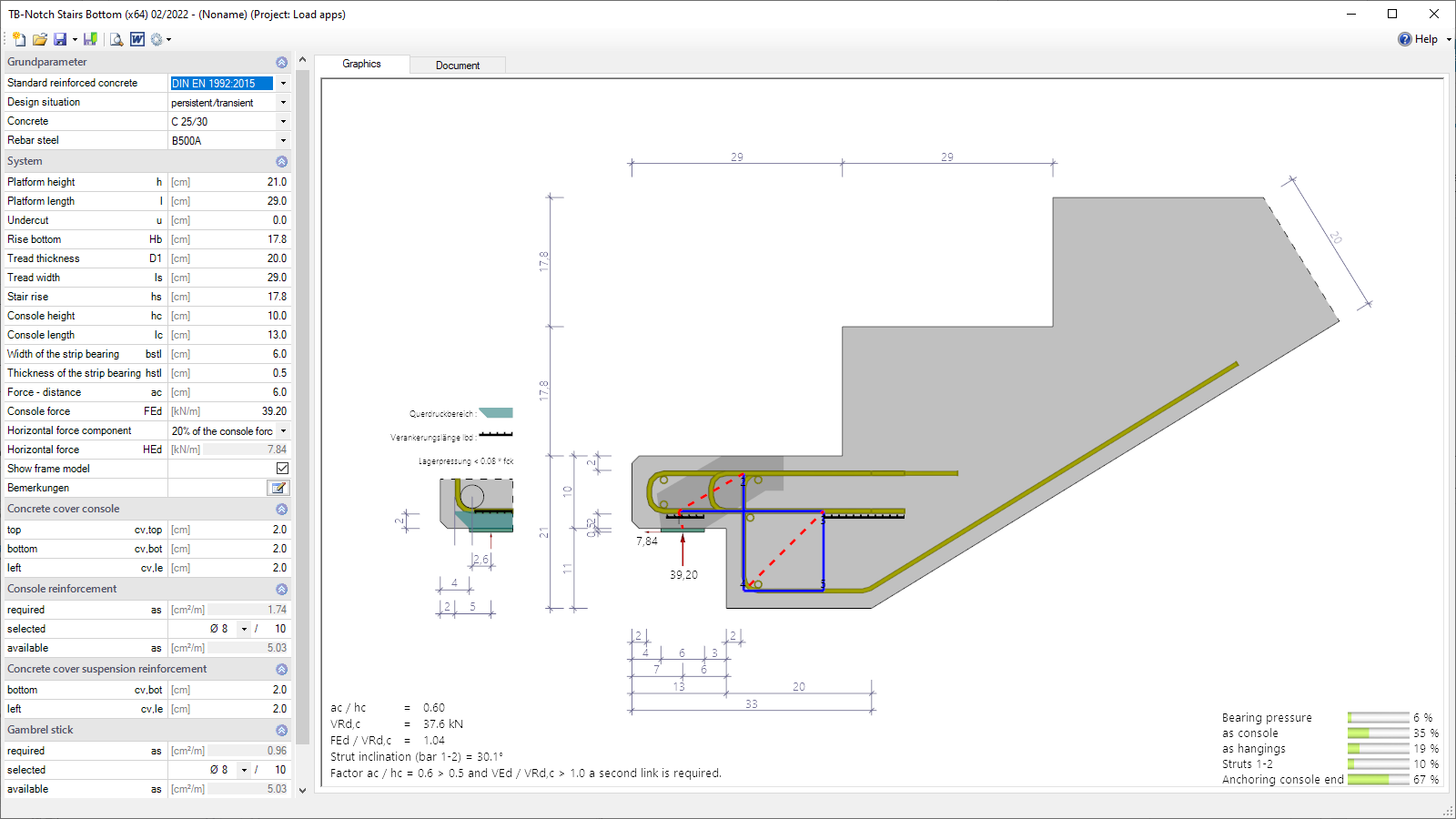

  • TB-BTU User interface
    TB-BTU User interface

Notch Stairs Bottom

TB-BTU

The TB-BTU module can be used to verify a stair support that is notched at the bottom.

to the shop
Design Output options Standards

Discover now more programs from the section Toolboxes Reinforced Concrete!

SHOW MORE
Calculations
  • Load capacity of the compression strut
  • Required main tensile reinforcement in the bracket
  • High-hanging reinforcement in the stair flight
  • Verification of the final anchorage of the reinforcement
Document file formats
  • PDF
  • Word
  • Printer
Output

Standard output

Standards
  • DIN EN 1992
  • ÖNORM EN 1992
