Line Corbel Slab
TB-BLD

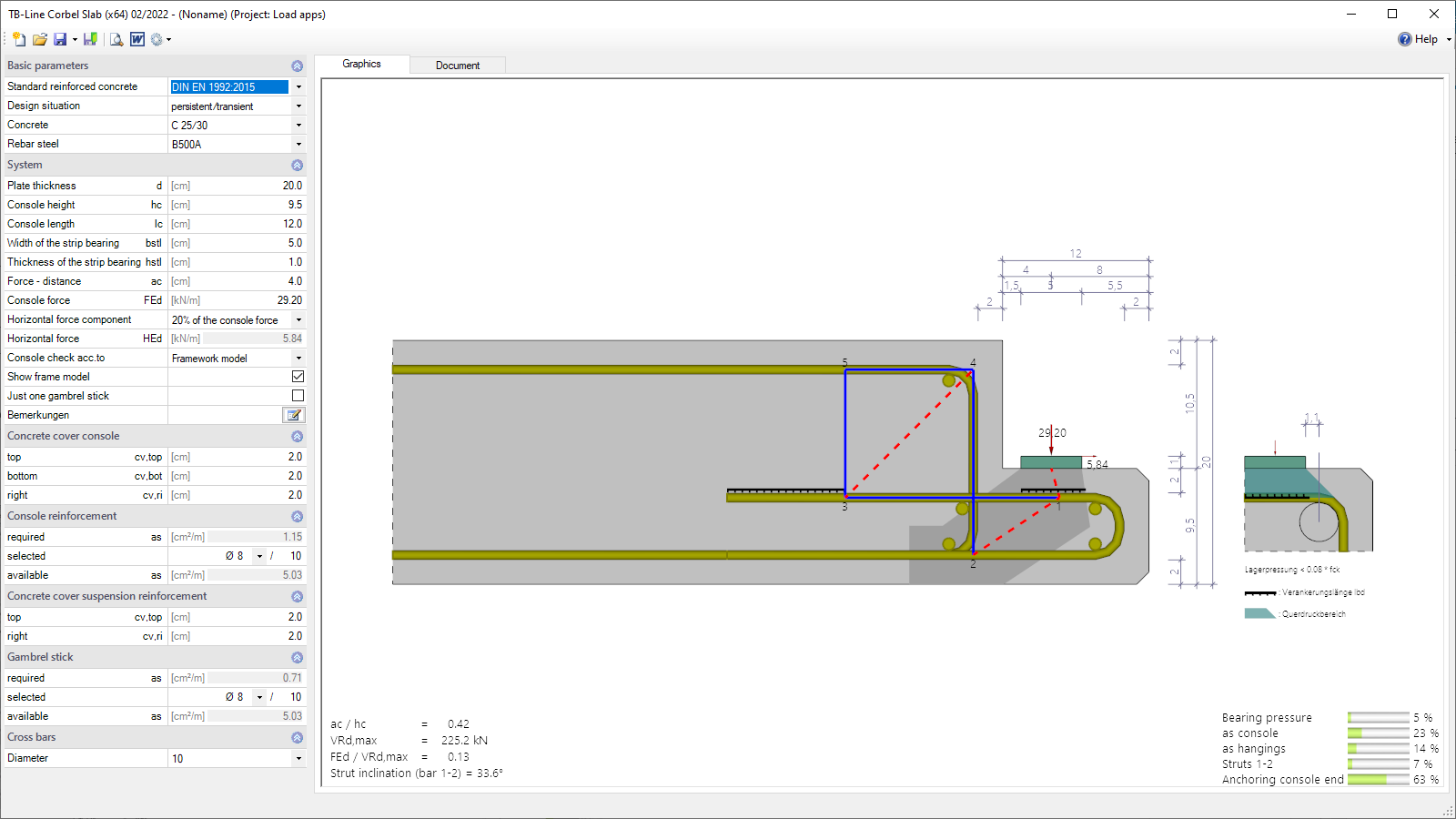

With the TB-BLD module, the verification for line brackets on a ceiling edge can be carried out.
Discover now more programs from the section Toolboxes Reinforced Concrete!
SHOW MORECalculations
- load capacity of the compression strut
- required main tensile reinforcement in the bracket
- required reinforcement in the load-reducing components
- verification of the final anchorage of the reinforcement
Documents
- Word
- Printer
Output
Standard output
Standards
- DIN EN 1992
- ÖNORM EN 1992
