Purlin Support with Cleat
TB-HPK

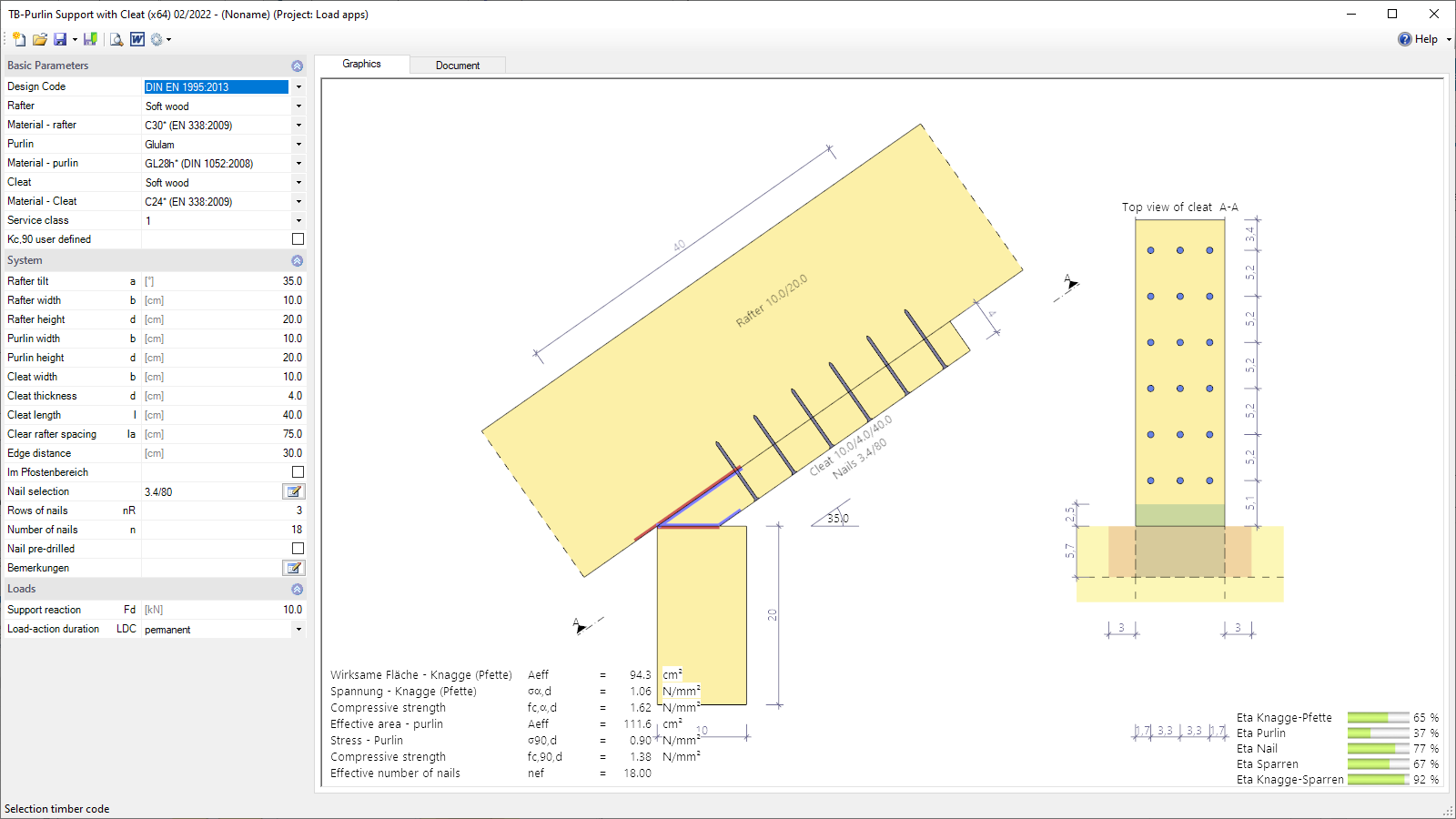

The TB-HPK module can be used to verify a purlin connection with a nailed-on cleat in accordance with EN 1995. The components can consist of different timber materials.
Discover now more programs from the section Toolboxes Timber!
SHOW MORECalculations
- Verification of the pressings in the cleat and purlin
- Verification of the nails for shearing in the joint between the cleat and the rafters
Document file formats
- Word
- Printer
Output
Standard output
Standards
- DIN EN 1995
- ÖNORM EN 1995
