Collar Beam Connection in Two Parts with Connector Joints TB-HKD

Collar Beam Connection with Connector Joints

TB-HKD

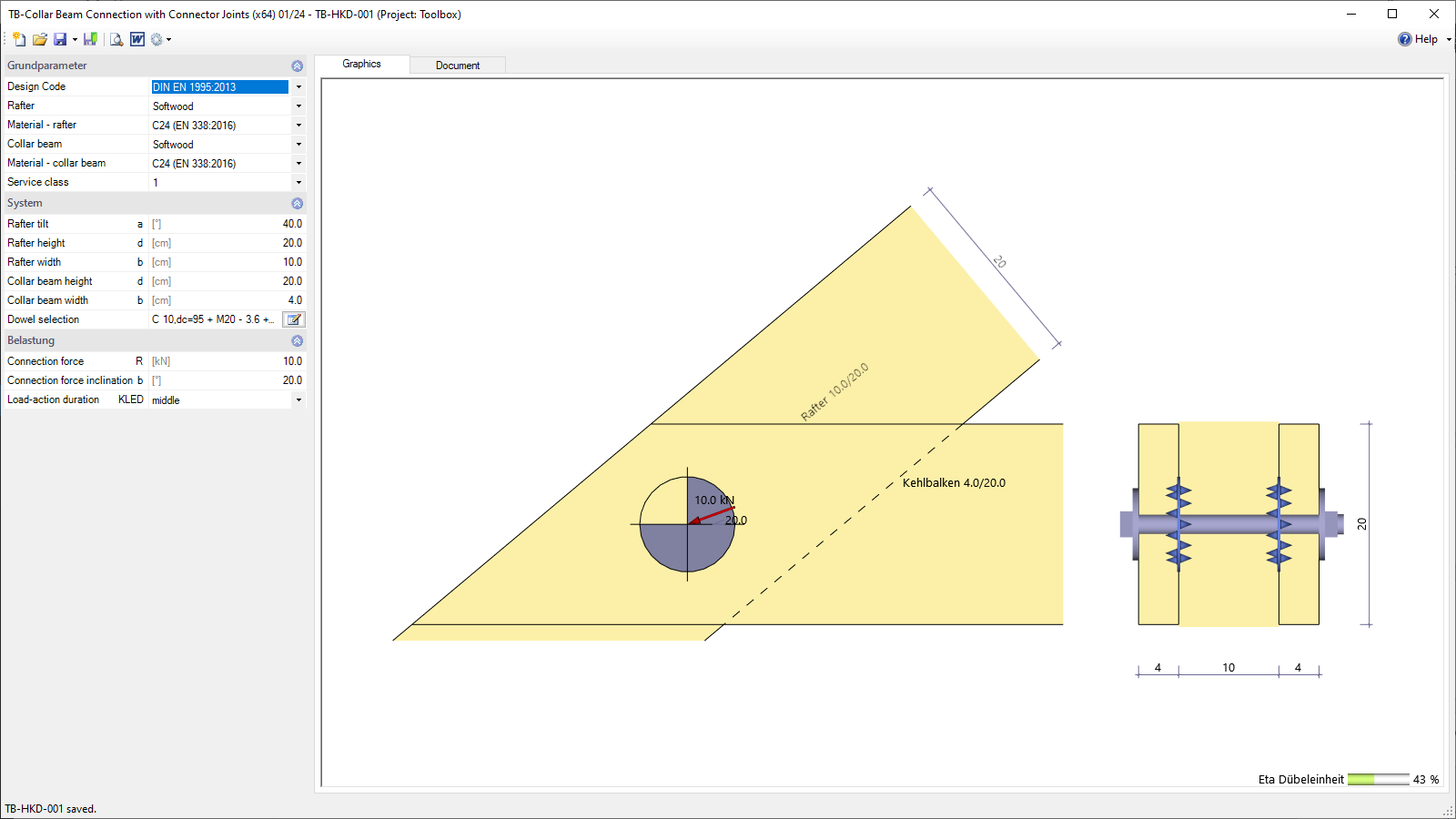

This program can be used to provide proof of a two-part collar beam connection with special design anchors in accordance with EN 1995. The statically required number of dowels for a given dowel type and diameter is calculated.

Design Output options Standards

Discover now more programs from the section Toolboxes Timber!

Calculations

The program calculates the statically required number of dowels for a given dowel type and diameter. The geometric arrangement and any reductions are NOT taken into account!

Documents

PDF
Word
Printer

Output

Standard output

Standards

DIN EN 1995
ÖNORM EN 1995

Support resources

Manual

Manual
