Collar Beam Connection with Nails TB-HKN
Collar Beam Connection with Nails

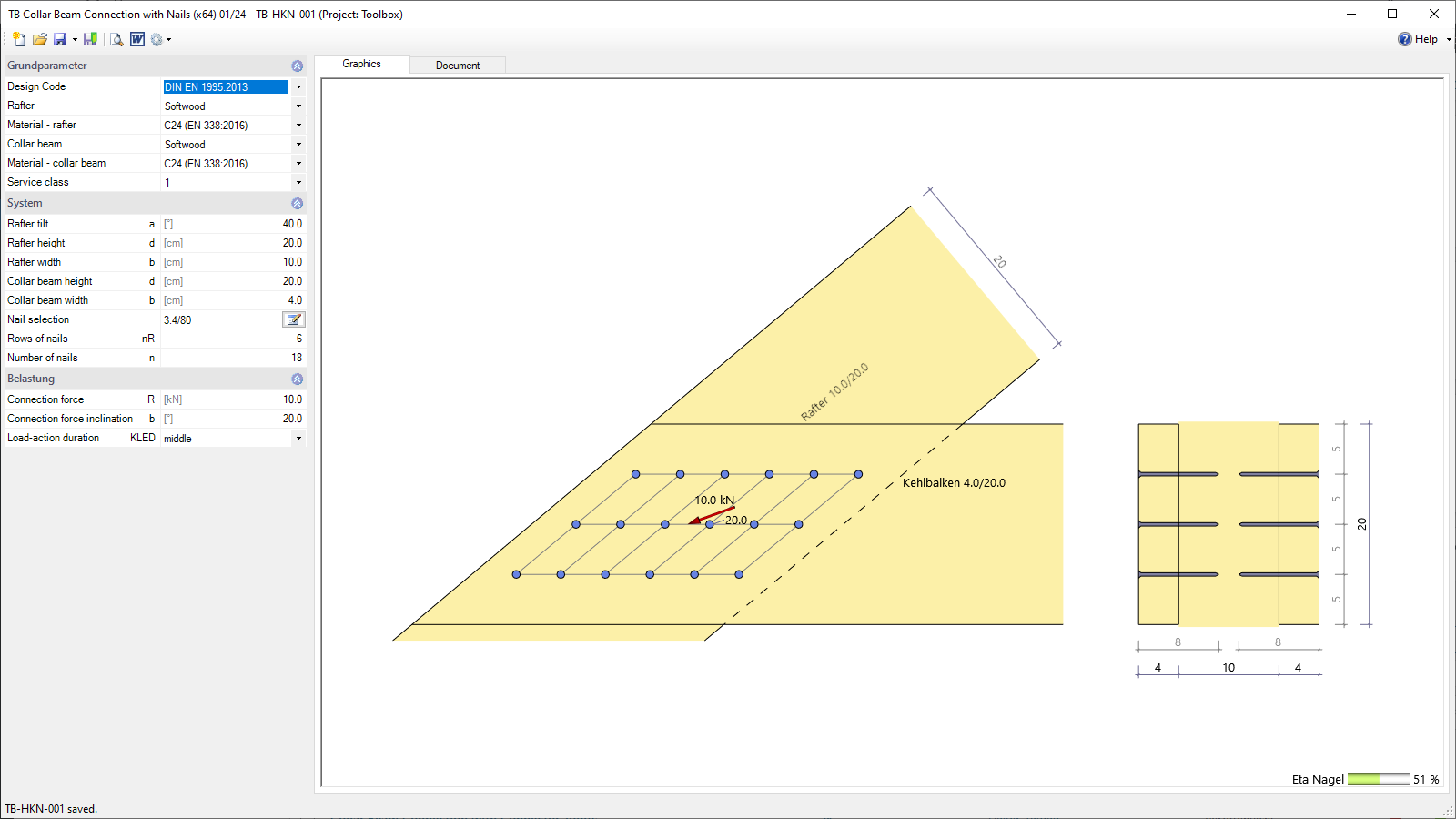

This module can be used to provide proof of a two-part nailed collar beam connection in accordance with EN 1995. The statically required number of nails for a given nail diameter is calculated. The components can be made of different timber materials.
Performance characteristics
Calculations
The statically required number of nails for a given nail diameter is calculated. The geometric arrangement and possible reductions are not taken into account!
Documents
- Word
- Printer
Output
Standard output
Standards
- DIN EN 1995
- ÖNORM EN 1995
