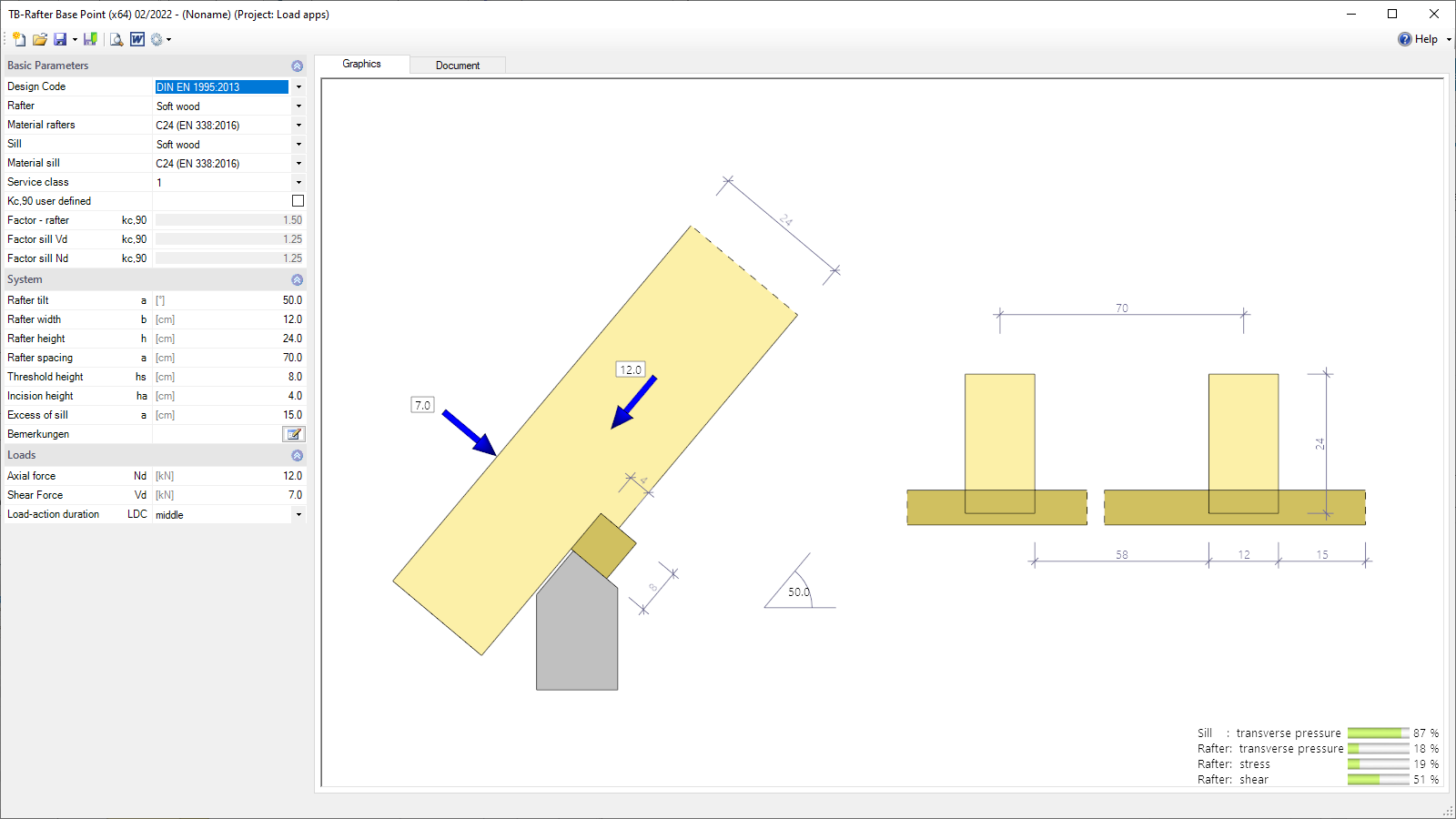

TB-HSF user interface
Rafter Base Point
The TB-HSF module can be used to verify base points of rafters with transverse and normal forces (e.g. of rafter or collar beam roofs).
Performance characteristics
Calculations
- Verification of notching for shear force, if necessary with output of the required reinforcing force.
- Compression perpendicular to the grain in all affected joints.
- Compression parallel to the grain in all affected joints.
Note: Lifting forces, wind suction anchorages and fixings in concrete are not dealt with.
