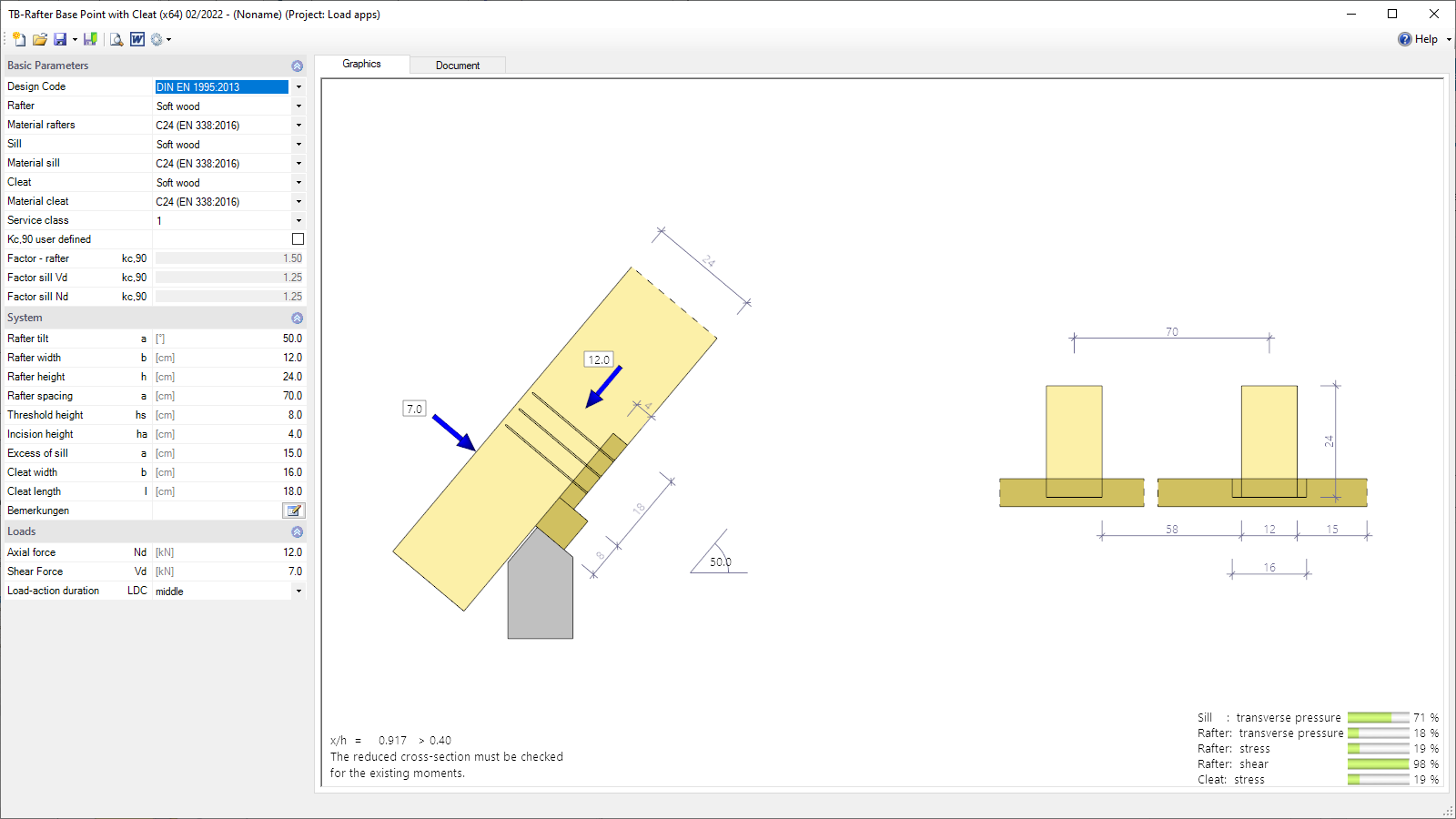

  • TB-HSK user interface
    TB-HSK user interface

Rafter Base Point with Cleat

The “Rafter Base Point with Cleat” toolbox can be used to verify rafter foot points with cleats with transverse and normal forces (e.g. of rafter or collar beam roofs).

To the editions

Only available in FRILO Professional und FRILO Ultimate

Performance characteristics

Design Standards Output options
Analysis
  • Verification of notching for shear force, if necessary with output of the required reinforcing force
  • Compression perpendicular to the grain in all affected joints
  • Compression parallel to the grain in all affected joints
  • Lifting forces, wind suction anchorages and fixings in concrete are not dealt with.
