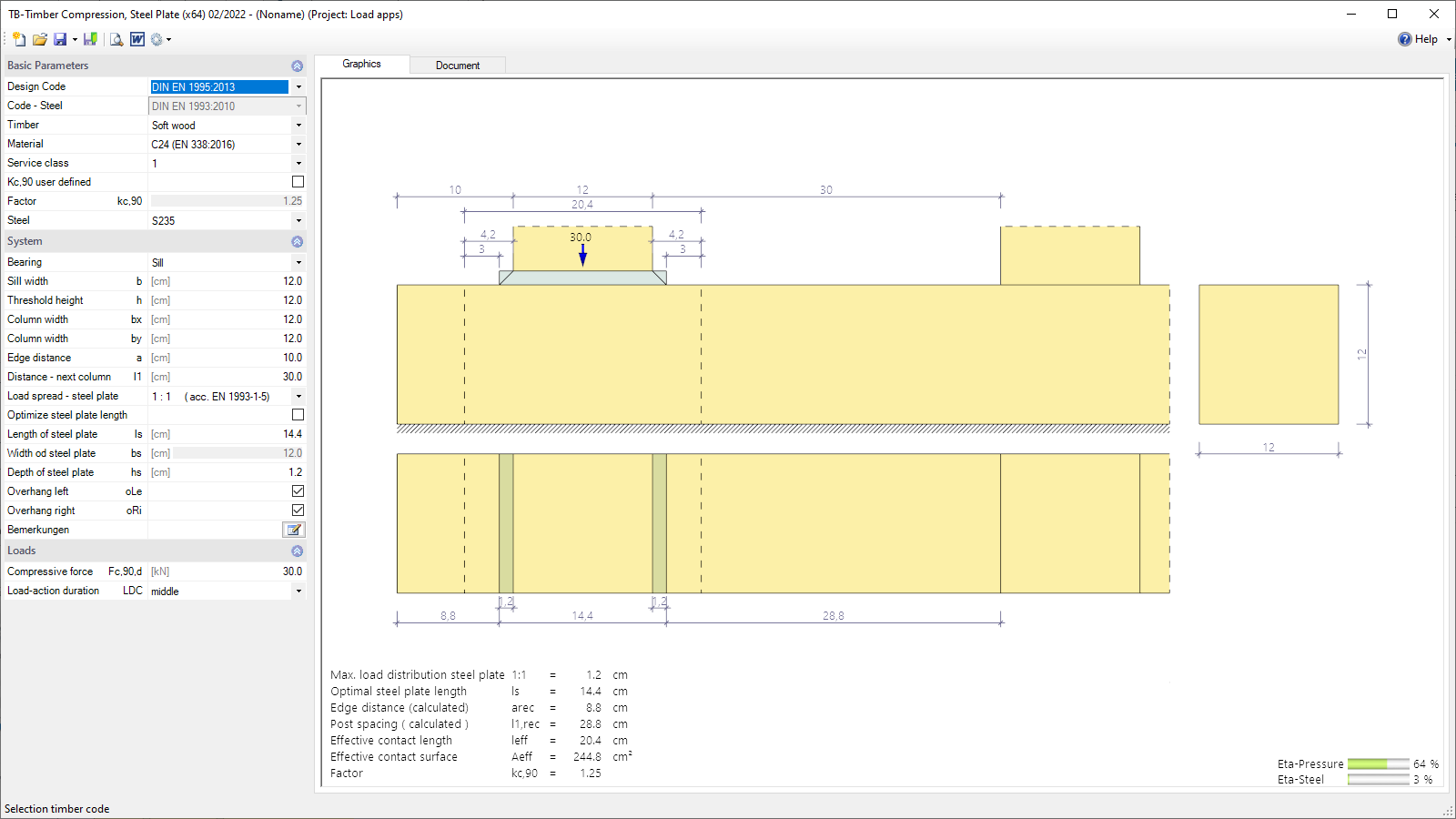

  • TB-HHS user interface
    TB-HHS user interface

Timber Compression Steel Plate

With the TB-HHS module, the verification of a timber compression can be carried out with the aid of a steel plate for load distribution perpendicular to the grain (e.g. bearing compression) depending on the load positions, the geometry and the material.

Buy now

Performance characteristics

Design Standards Output options
Calculations
  • Calculation of kc90
  • Calculation of kmod and transverse compressive strength fc,90,d
  • Calculation of the resulting bearing surface Aeff
  • Stress verification for the transverse compression sd
  • Stress analysis for the steel sheet
Document file formats
  • PDF
  • Word
  • Printer
Output

Standard output

Timber
  • DIN EN 1995
  • ÖNORM EN 1995
Stahl
  • DIN EN 1993
  • ÖNORM EN 1993
