    Horizontal Beam Interface

Horizontal Beam Interface

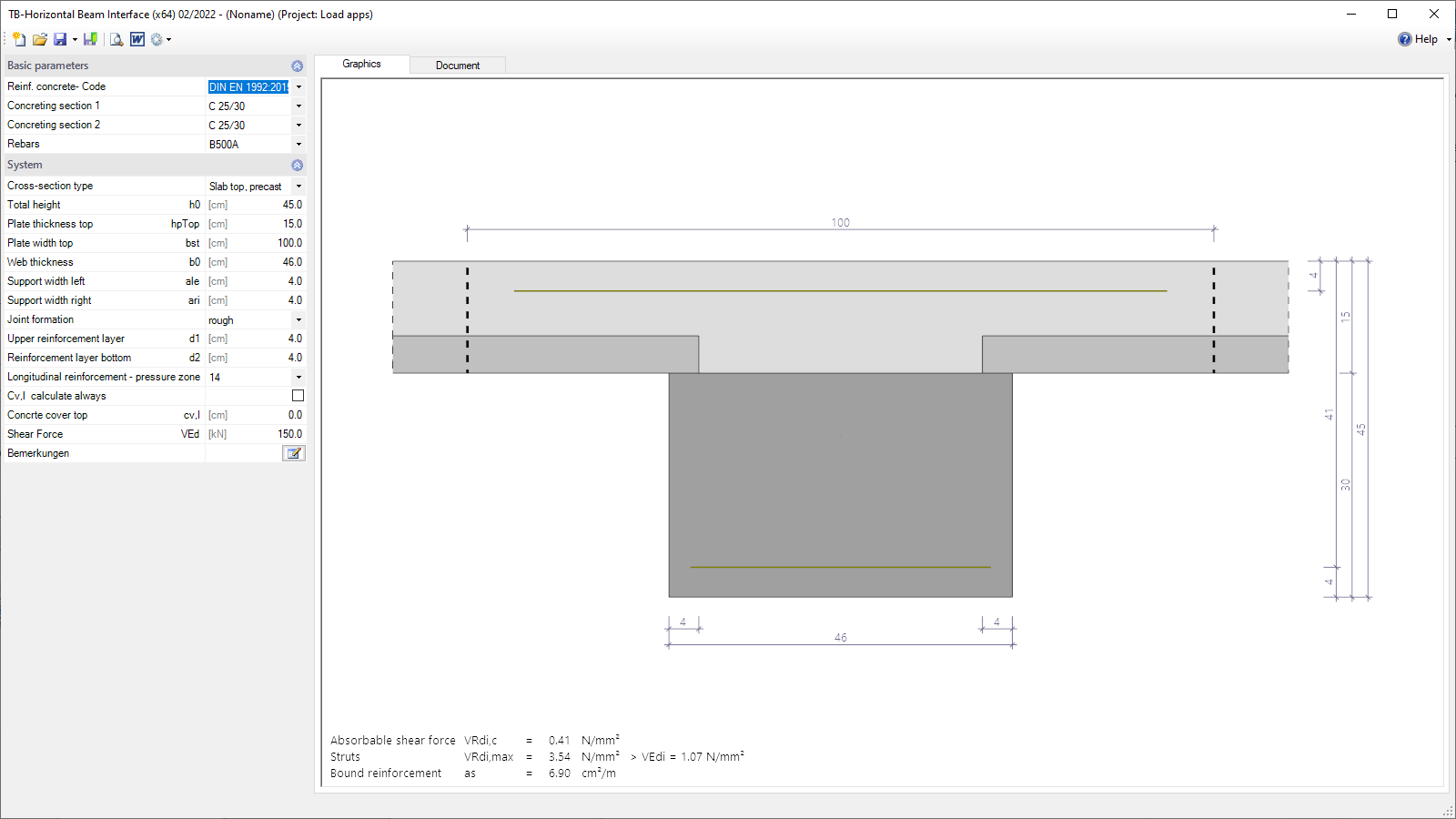

The TB-BVT module can be used to verify a composite joint for reinforced concrete beams according to EC2. Systems with shear force along the composite joint can be verified.

Buy now

Performance characteristics

Input Design Standards Output options
Structural system
  • Rectangular cross-section
  • Slab beams as downstand beam with in-situ concrete slab
  • Slab beam as downstand beam with slab as semi-prefabricated parts with in-situ concrete addition
Calculations
  • Maximum joint load-bearing capacity
  • required composite reinforcement
Document file formats
  • PDF
  • Word
  • Printer
Output

Standard output

Standards
  • DIN EN 1992
  • ÖNORM EN 1992

Support resources

Manual
Manual
