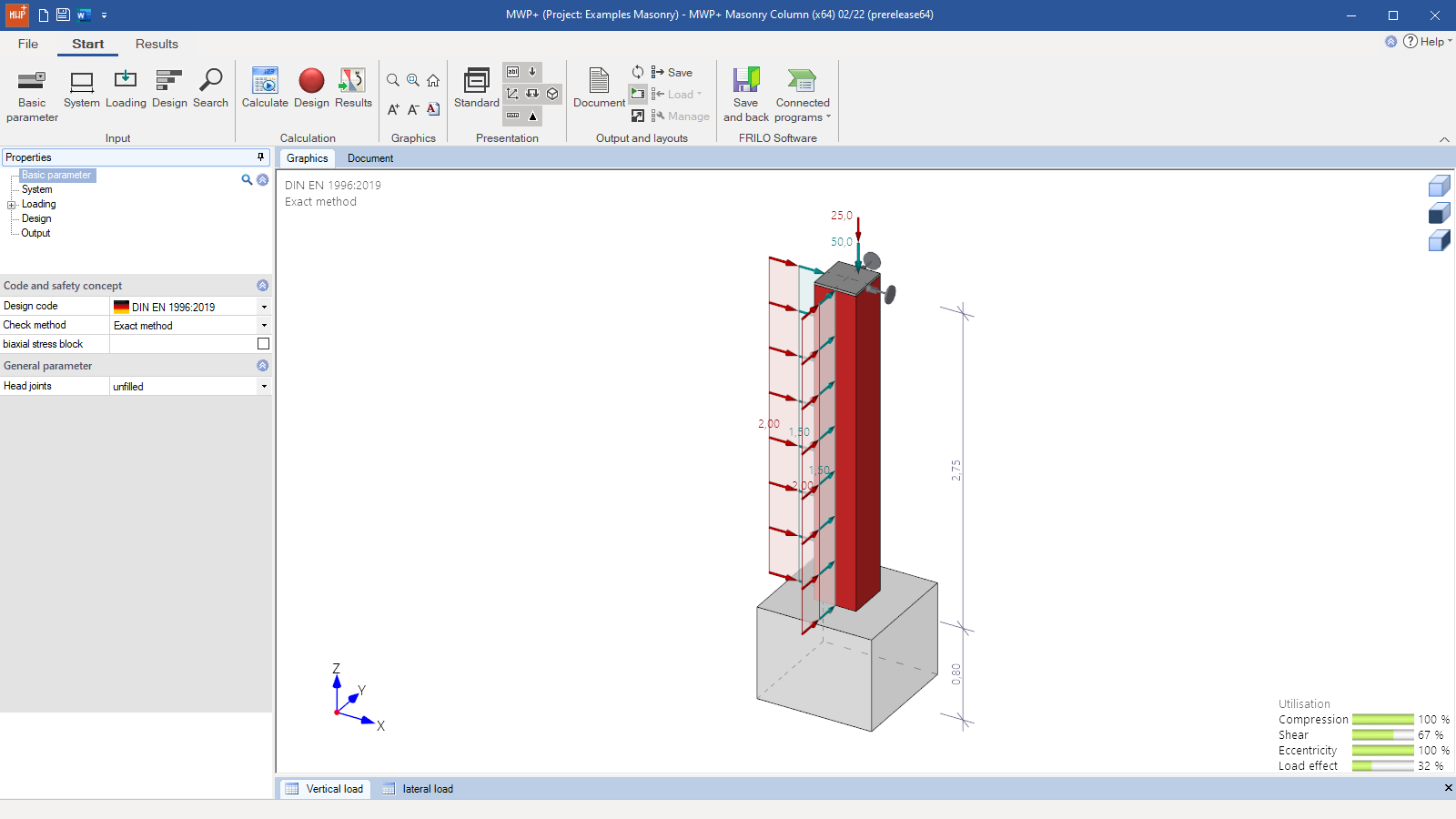

MWP+ user interface, basic parameters -

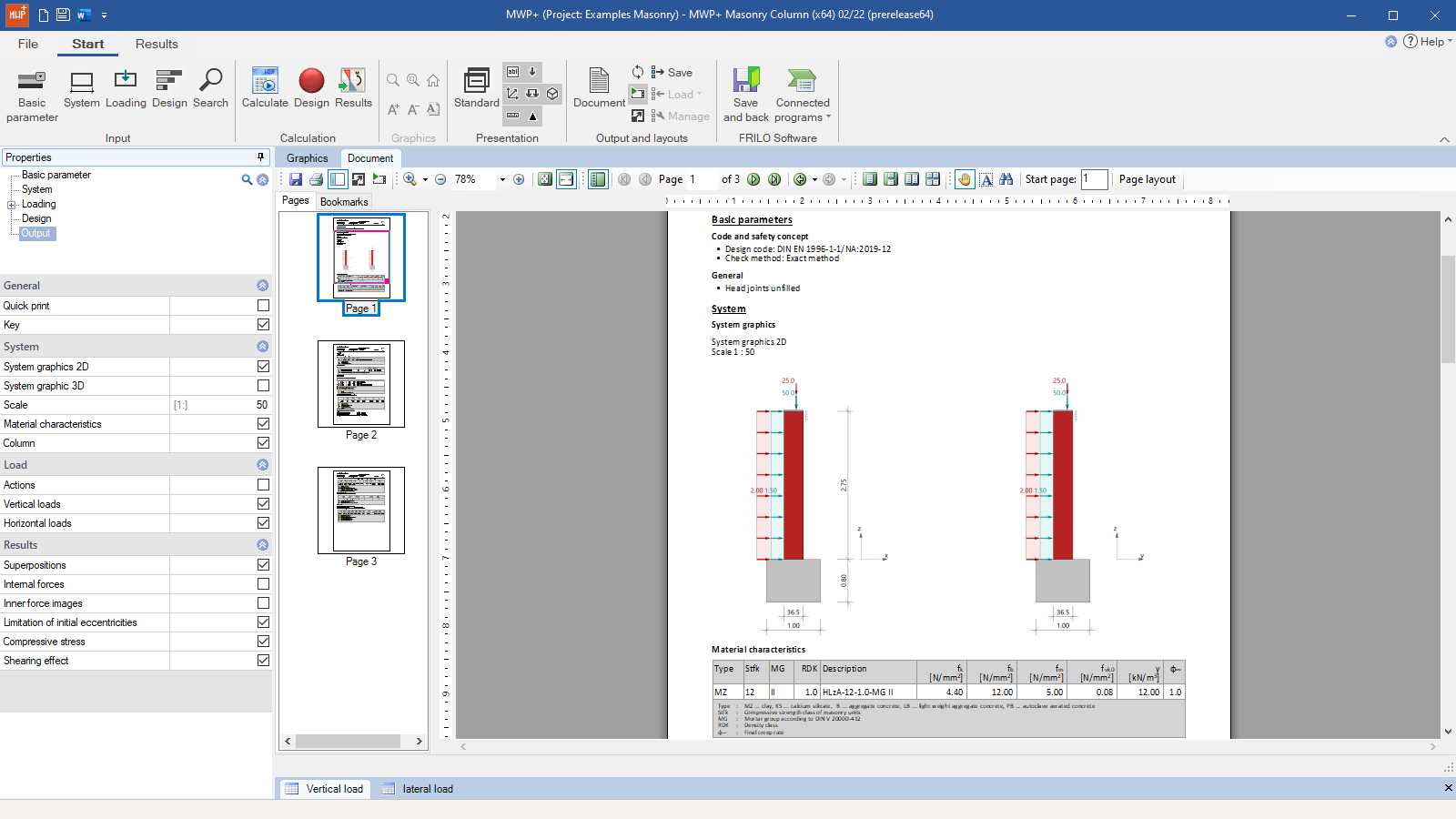

Output document -

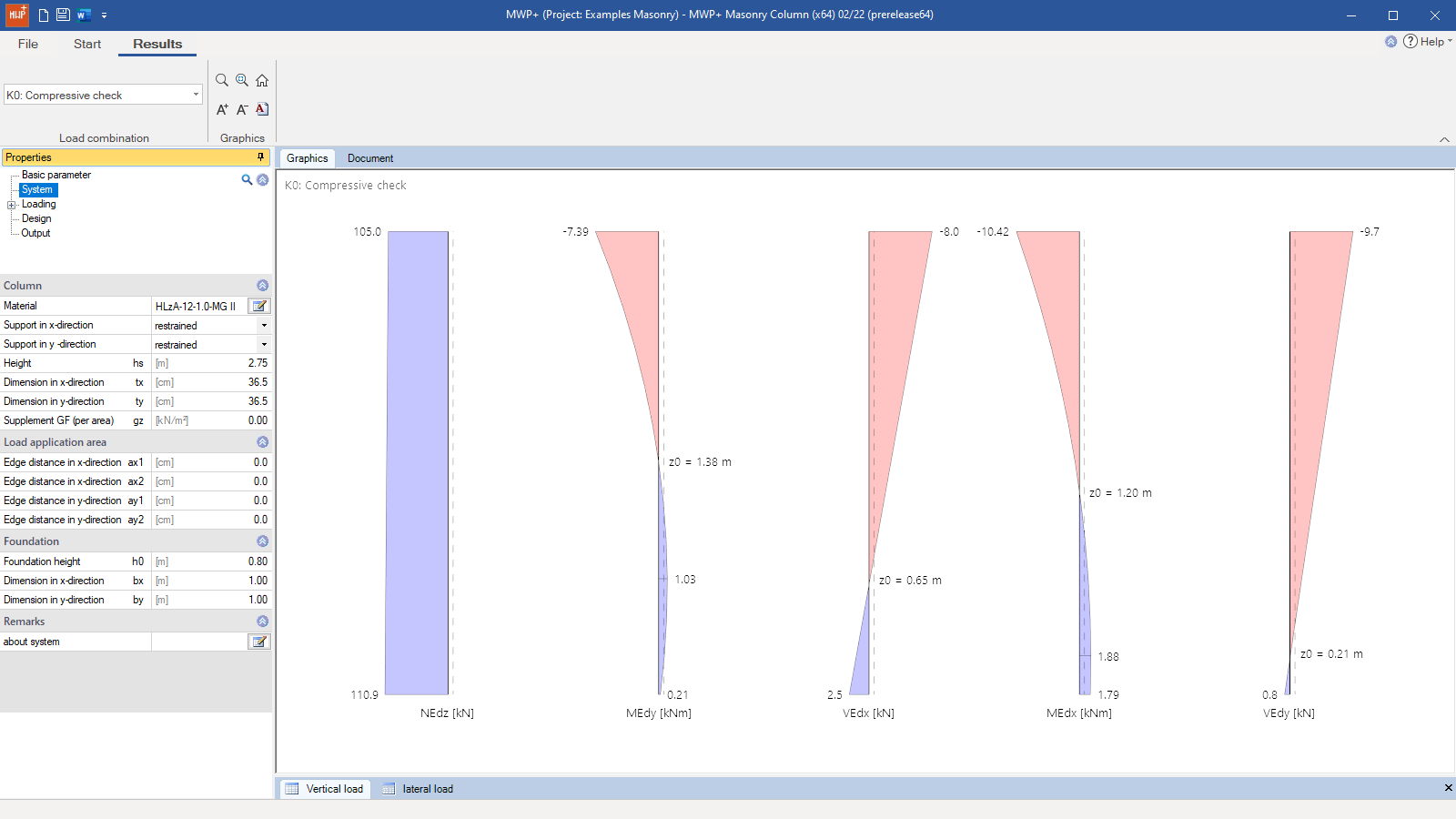

Internal forces diagrams in the results view -

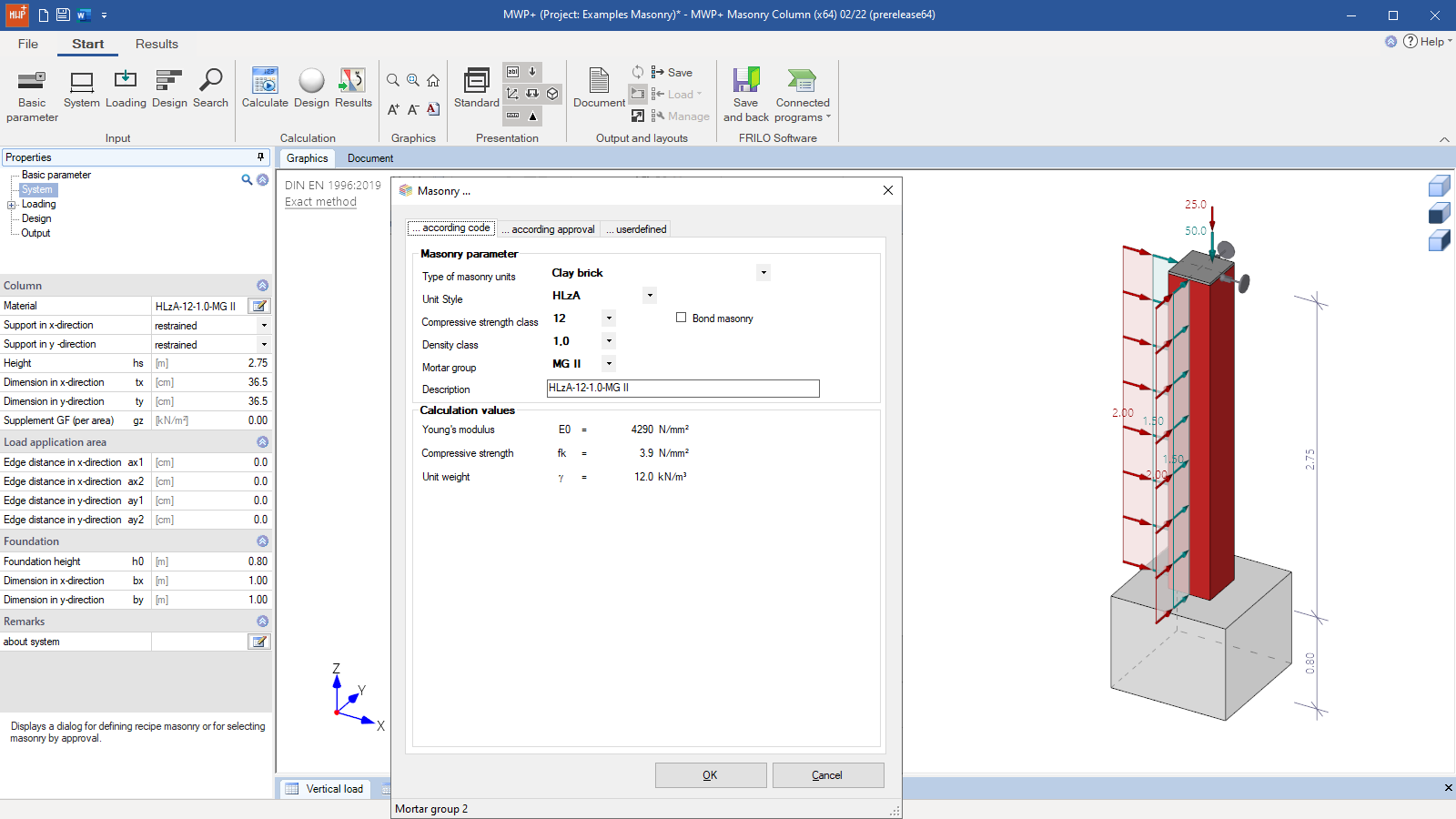

Selection of masonry material - as per relevant standard, as per approval, or user-defined
Masonry Column
MWP+
The MWP+ program is used to perform structural safety analyses of masonry columns, i.e. bar-shaped components with a rectangular cross-section that are subjected to compression under systematic uniaxial and biaxial bending.
Discover now more programs from the section Masonry!
SHOW MOREStructural system
Parameters for:
- Column
- Load application area
- Loundation
Loads
- Vertical loads
- Horizontal loads
Particularities
- Cantilever column
- Hinged column
- Restrained column
- Manufacturer databases for clay bricks and lightweight concrete units:
- Wienerberger
- Schlagmann Poroton
- UNIPOR
- Kellerer ZMK Ziegelsysteme
- BV Leichtbeton)
Design
- Simplified method
- More accurate method
Document file formats
- Word
- Printer
Output
- Brief output
- User-defined scope
Transfer options
- Isolated Foundation FD+
Standards
- EN 1996-1-1/EN 1996-3 in combination with the National Annexes (Germany, Austria, United Kingdom, Czech Republic, Netherlands, Belgium, Poland)
- DIN 1053-1:1996-11 (2014, global safety concept)
- DIN 1053-100:2007-09 (partial safety concept)
