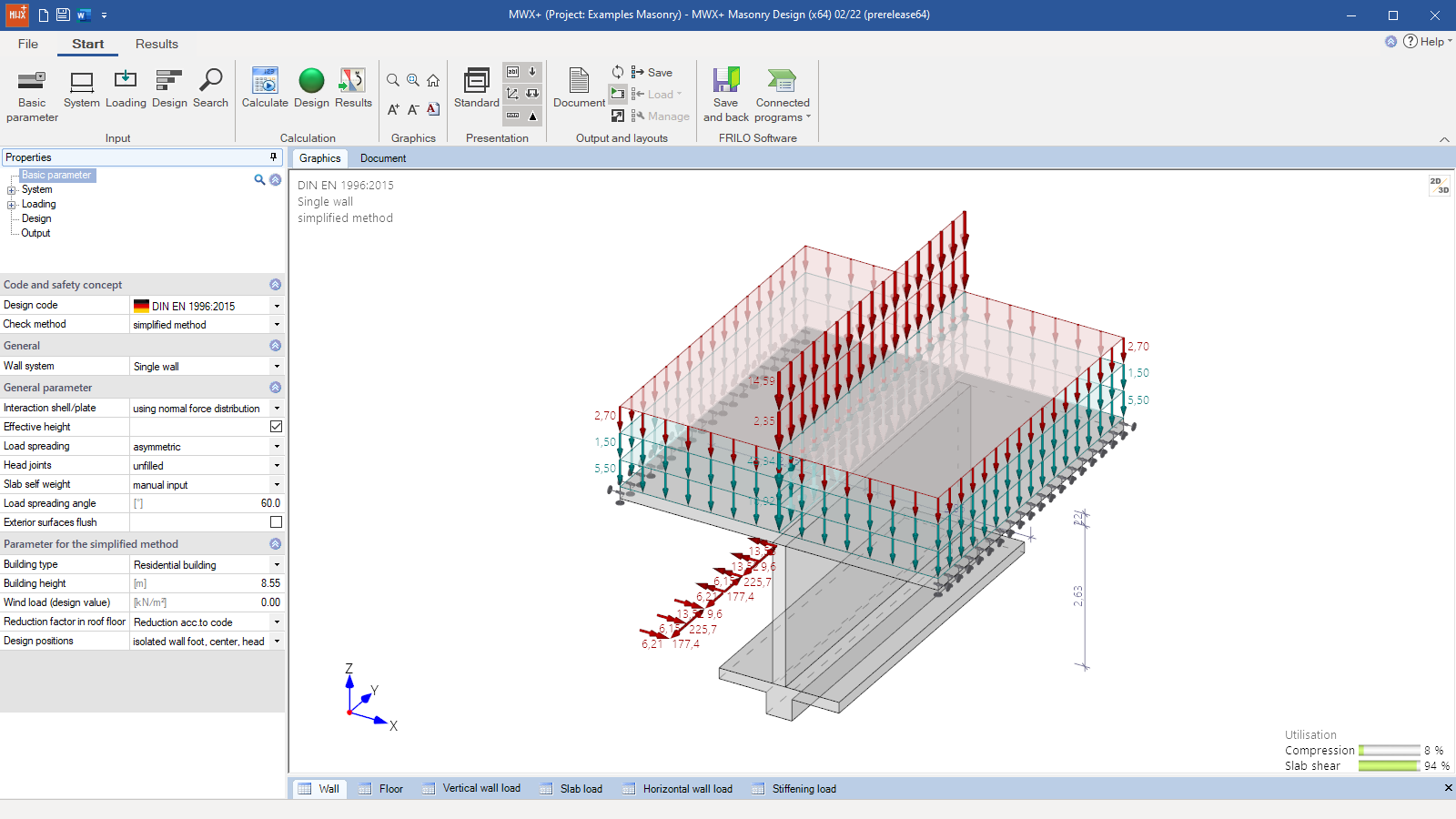

MWX+ user interface, basic parameters -

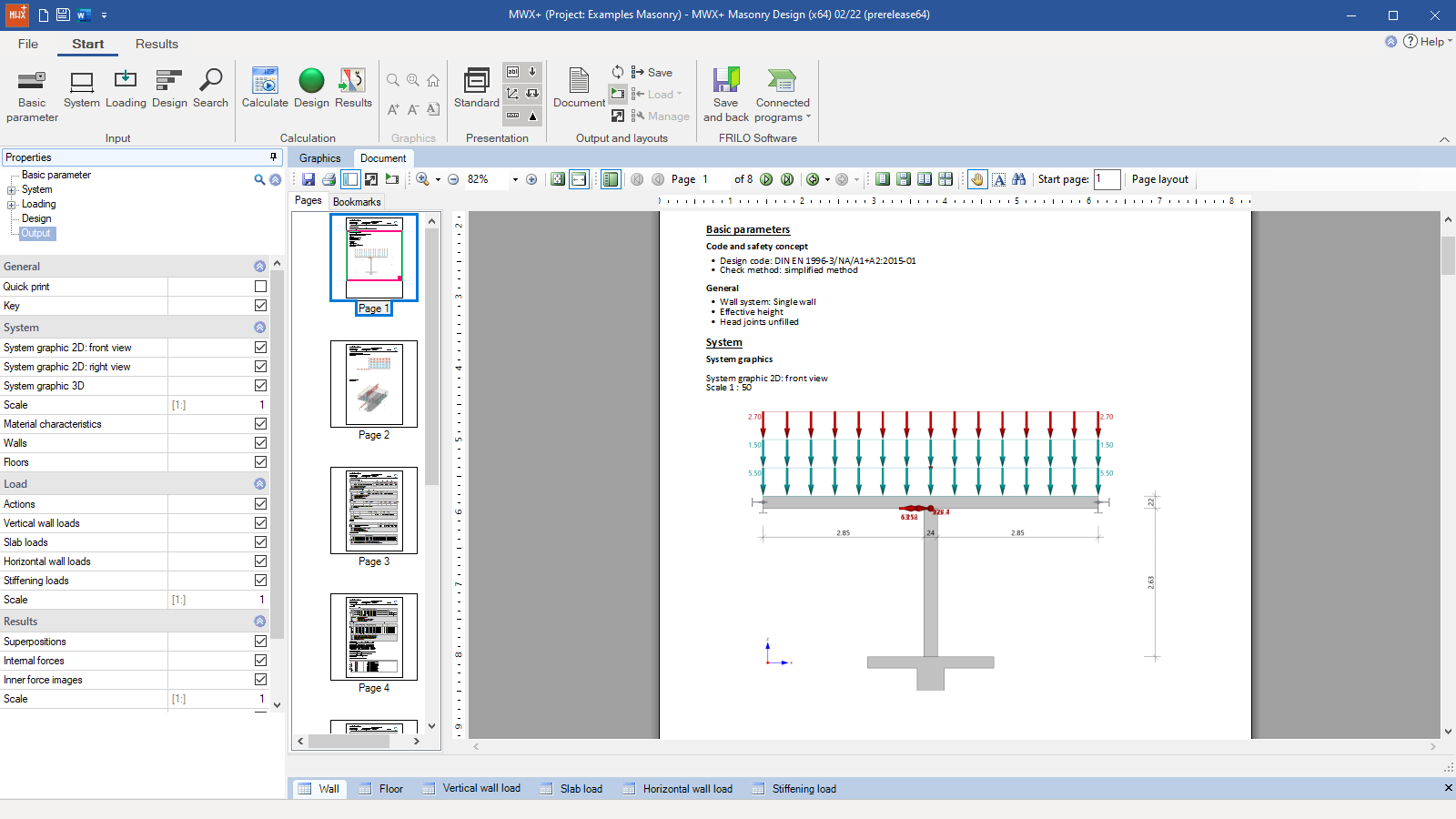

Output document -

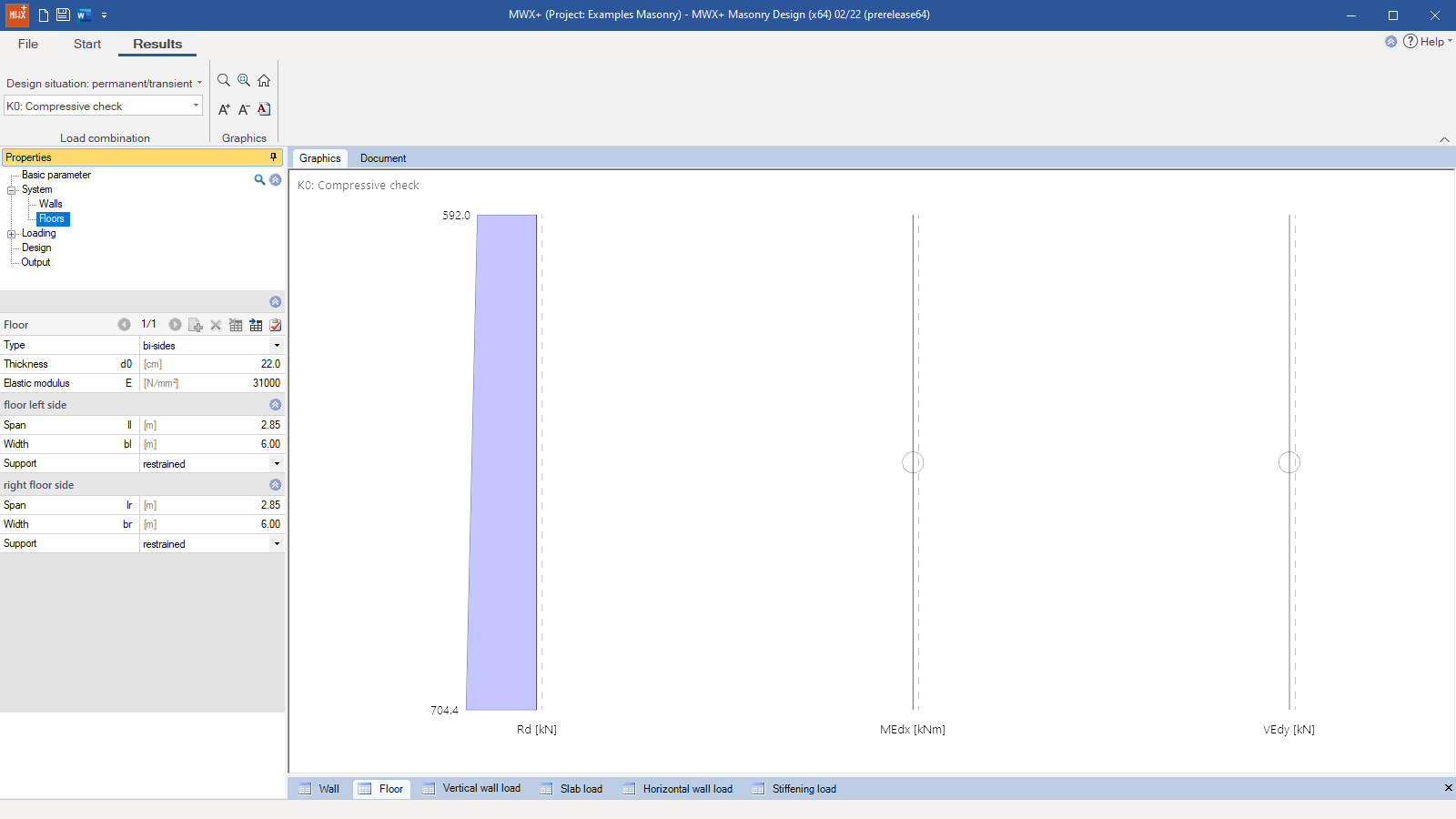

Internal forces diagrams in the results view -

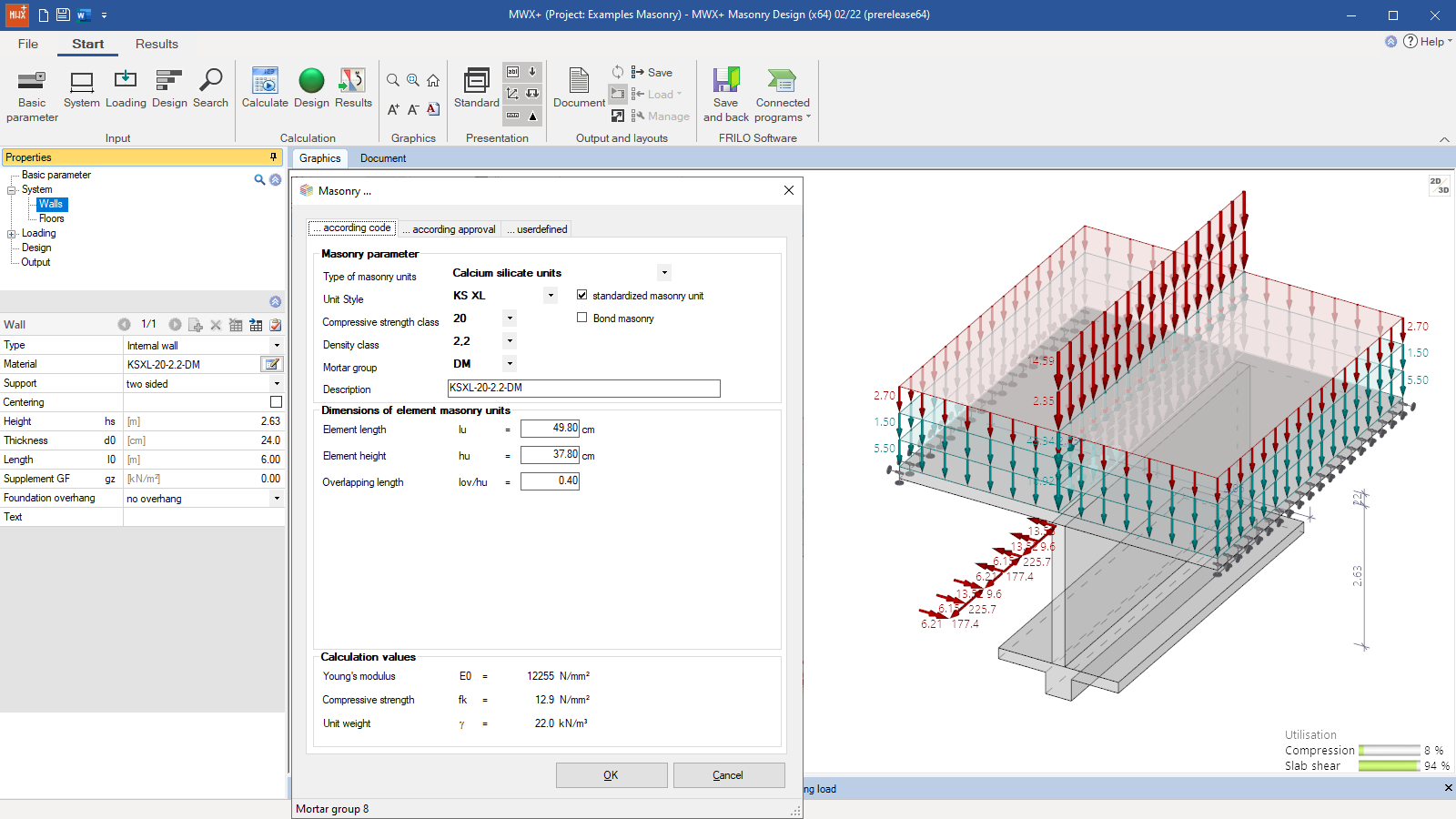

Selection of masonry material - as per relevant standard, as per approval, or user-defined
Masonry Design
The MWX+ program is used to verify the structural safety of individual walls. In these calculations, the transition to the global structural system is established via corresponding border conditions from the adjoining components (bending stiffness of walls underneath and above the considered wall, supporting conditions of floor slabs on the opposite side of the wall). In addition to individual walls, the user can perform calculations of structural systems that consist of basement walls, intermediate storey walls, and top storey walls.
Moreover, MWX+ allows the user to analyse bracing wall diaphragms loaded by diaphragm-related shear.
Performance characteristics
Das Feature erlaubt den Nachweis der Tragsicherheit von einzelnen Wänden. Der Übergang zum Gesamtsystem wird dabei über entsprechende Randbedingungen aus den anschließenden Bauteilen hergestellt (Biegesteifigkeiten von Wänden unter- und oberhalb der betrachteten Wand, wandabseitige Lagerungsbedingungen der Deckenplatten). Für die Berechnung können neben der Einzelwand die statischen Systeme von Unter-, Zwischen- und Obergeschosswänden gewählt werden. Darüber hinaus können aussteifende Wandscheiben unter Scheibenschubbeanspruchung nachgewiesen werden.
Structural system
Parameters for:
- Wall types
- Supports
- Storey floor slabs
Loads
- Vertical wall loads
- Floor slab loads
- Horizontal wall loads
- Bracing loads
Particularities
- Verification of individual walls subjected to general loads
- Verification of the diaphragm-related loading
- Detailed material definition
- Manufacturer databases for clay bricks and lightweight concrete units:
- Wienerberge
- Schlagmann Poroton
- UNIPOR
- Kellerer ZMK Ziegelsysteme,
- BV Leichtbeton
- Interactive 3-d graphical user interface
Design
- Simplified method
- More accurate method
- Determination of the utilization factor in the event of fire
Document file formats
- Word
- Printer
Output
- Brief output
- User-defined scope
Transfer options
- Reinforced Raft Foundation FDR+
- Strip Foundation FDS+
- Masonry Design MWX+ (load transfer)
- Masonry Basement Wall MWK+ (load transfer)
- Masonry Basement Wall MWK+ (system conversion, derivation of a basement wall (incl. earth pressure) from an existing MWX item)
- SCIA Engineer interface for design in MWX
Masonry
- DIN EN 1996:2019
- DIN EN 1996:2015
- DIN EN 1996:2012
- ÖNORM EN 1996:2009
- BS EN 1996:2007
- NEN EN 1996:2007
- prNBN EN 1996:2009
- CSN EN 1996:2008
- PN EN 1996:2010
- DIN 1053-1
- DIN 1053-1:2014
- DIN 1053-100
