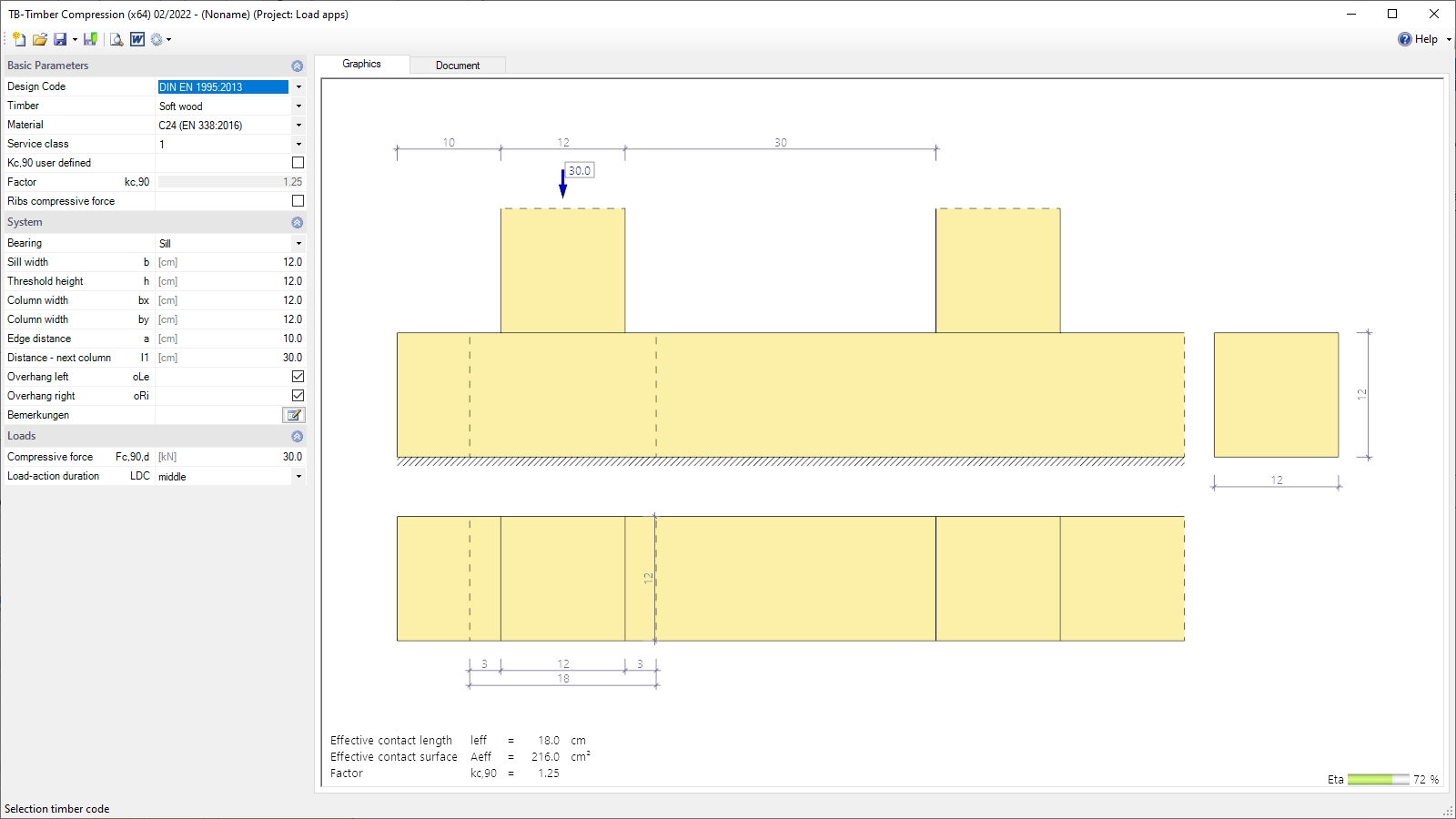

TB-HHP user interface

Timber Compression

TB-HHP

The TB-HHP module can be used to verify wood compression perpendicular to the grain (e.g. bearing compression) depending on the load positions, geometry and material.

Design Output options Standards

Discover now more programs from the section Toolboxes Timber!

Calculations

Calculation of k_c90
Calculation of k_modand transverse compressive strength f_c,90,d
Calculation of the resulting bearing surface A_eff
Stress verification for transverse compression s_d

Document file formats

PDF
Word
Printer

Output

Standard output

Standards

DIN EN 1995
ÖNORM EN 1995

Support resources

Manual

Manual
