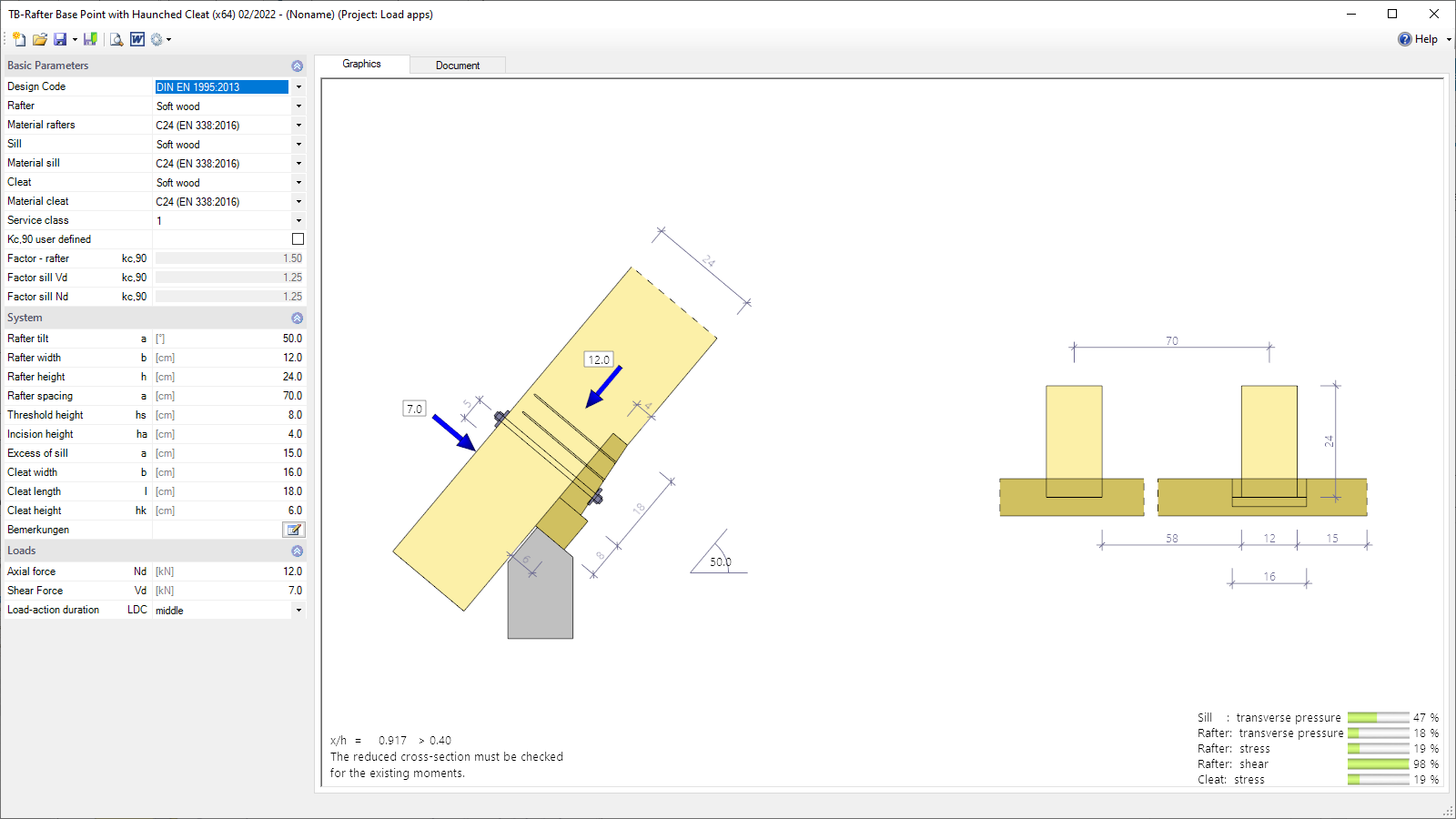

TB-HSV user interface
Rafter Base Point with Haunched Cleat
TB-HSV
With the TB-HSV module, rafter base points with haunched cleats can be verified with transverse and normal forces (e.g. of rafter or collar beam roofs).
Discover now more programs from the section Toolboxes Timber!
SHOW MORECalculations
- Verification of notching for shear force, if necessary with output of the required reinforcing force.
- Compression perpendicular to the grain in all affected joints
- Compression parallel to the grain in all affected joints
Note: Lifting forces, wind suction anchorages and fixings in concrete are not dealt with.
