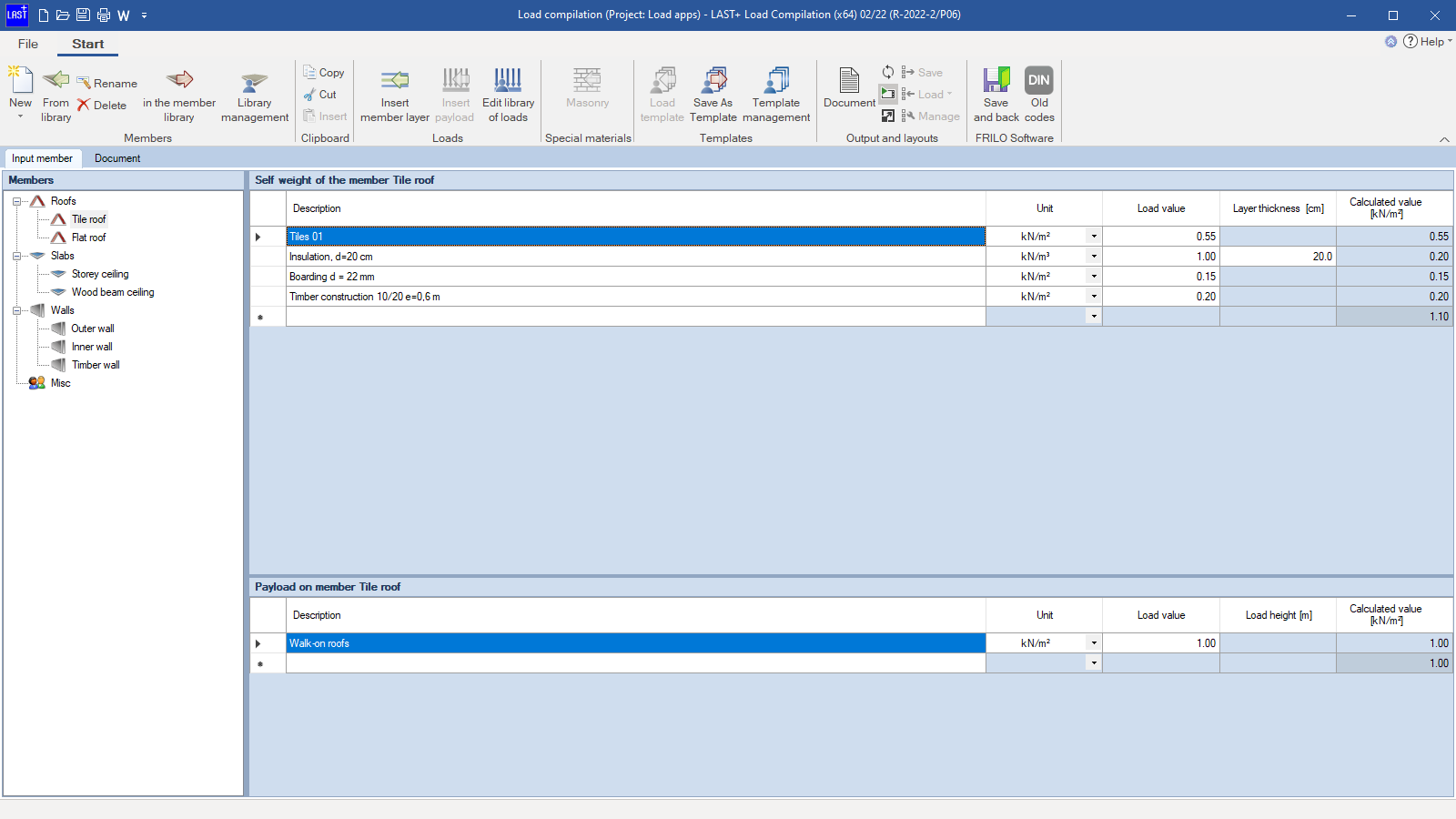

LAST+ user interface -
LAST+ user interface
Load Compilation
LAST+ is used to compile area-related self-weights and predefined imposed loads on roof, floor and wall components.
The self-weights of the components and their imposed loads are to be understood as project-related load assumptions.
These load assumptions can be accessed via the PLUS programs – thus the origin of the load can also be documented.
Discover now more programs from the section Load Programs!
SHOW MORELayer build-up
The self-weight of the components is defined by their layer structure.
The component layers are either entered directly by the user or corresponding libraries are used.
For masonry walls, the definition of masonry of simplified design or the selection of products according to approval is possible.
Imposed loads
For roof and ceiling components, imposed loads can be defined optionally.
Component library
The defined components can be stored in a component library.
By means of import/export functions, the components can be made available to other users – a LAST+ licence is required to import a component library.
Load library
This load library contains loads in accordance with EN 1991-1-1.
In addition to the selection of pre-defined loads according to EN 1991-1-1, the load library also allows the definition and editing of user-defined loads.
Document file formats
- Word
- Printer
Output
The load value compilation is also displayed in the output document.
In programs that are prepared accordingly the load value compilation is available even when you do not have a LAST+ license. However, accessing the load and component libraries as well as the LAST+ items is only possible with the corresponding licence.
The load value compilation is called up via a special load-icon or via the F5 key.
A load value compilation is stored in the respective item of the FRILO application.
Licence
In programs that are prepared accordingly the load value compilation is available even when you do not have a LAST+ license. However, accessing the load and component libraries as well as the LAST+ items is only possible with the corresponding licence. The load value compilation is called up via a special load-icon or via the F5 key. A load value compilation is stored in the respective item of the FRILO application.
