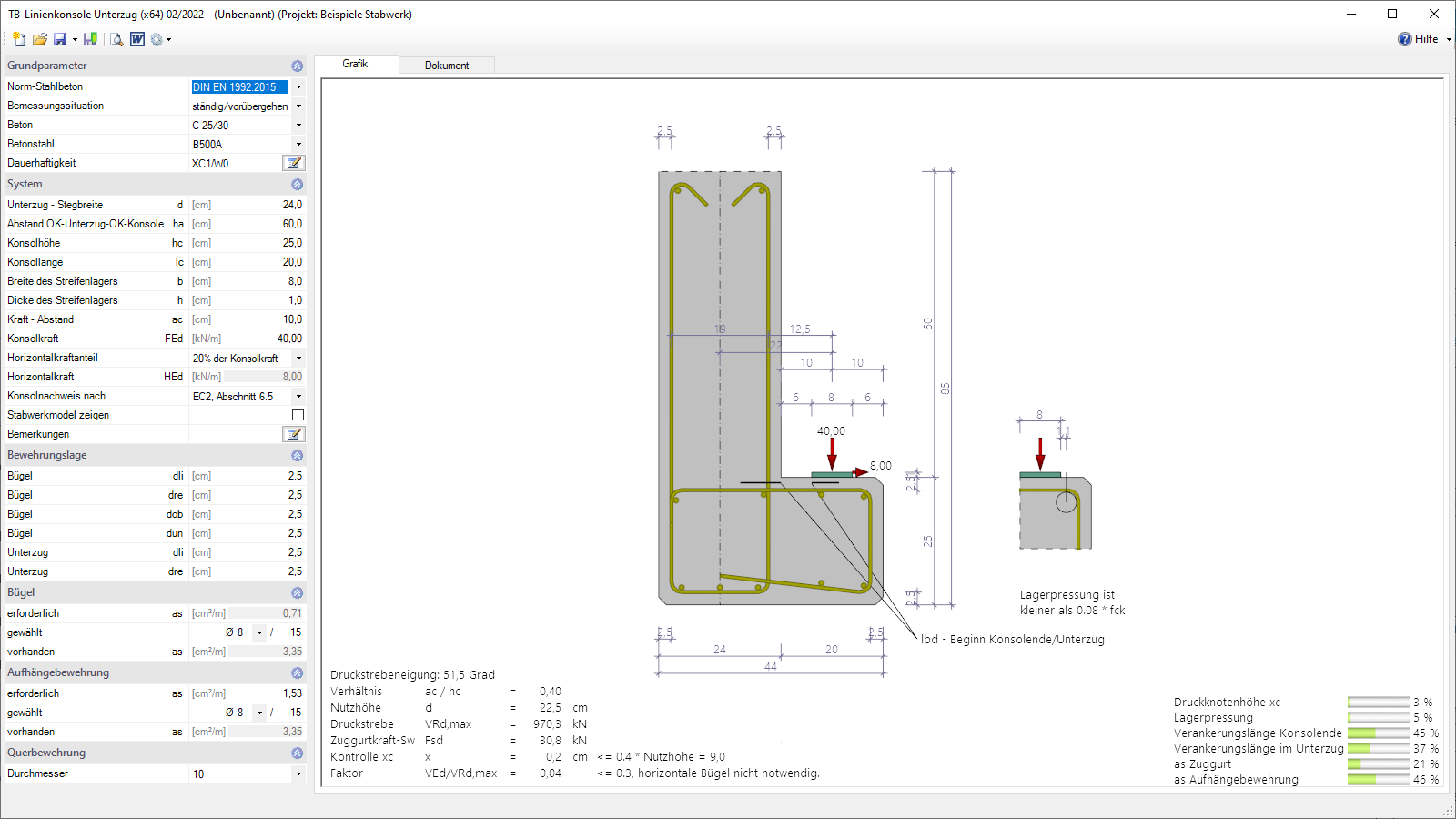

Die Programmoberfläche

Linienkonsole Unterzug

TB-BLU

Mit dem Modul TB-BLU kann der Nachweis für Linienkonsolen an einem Unterzug geführt werden.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Tragfähigkeit der Druckstrebe
erforderliche Hauptzugbewehrung in der Konsole
erforderliche Bewehrung in den lastabnehmenden Bauteilen
Nachweis der Endverankerung der Bewehrung

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1992
ÖNORM EN 1992

Hilfsmittel

Handbuch

Handbuch
