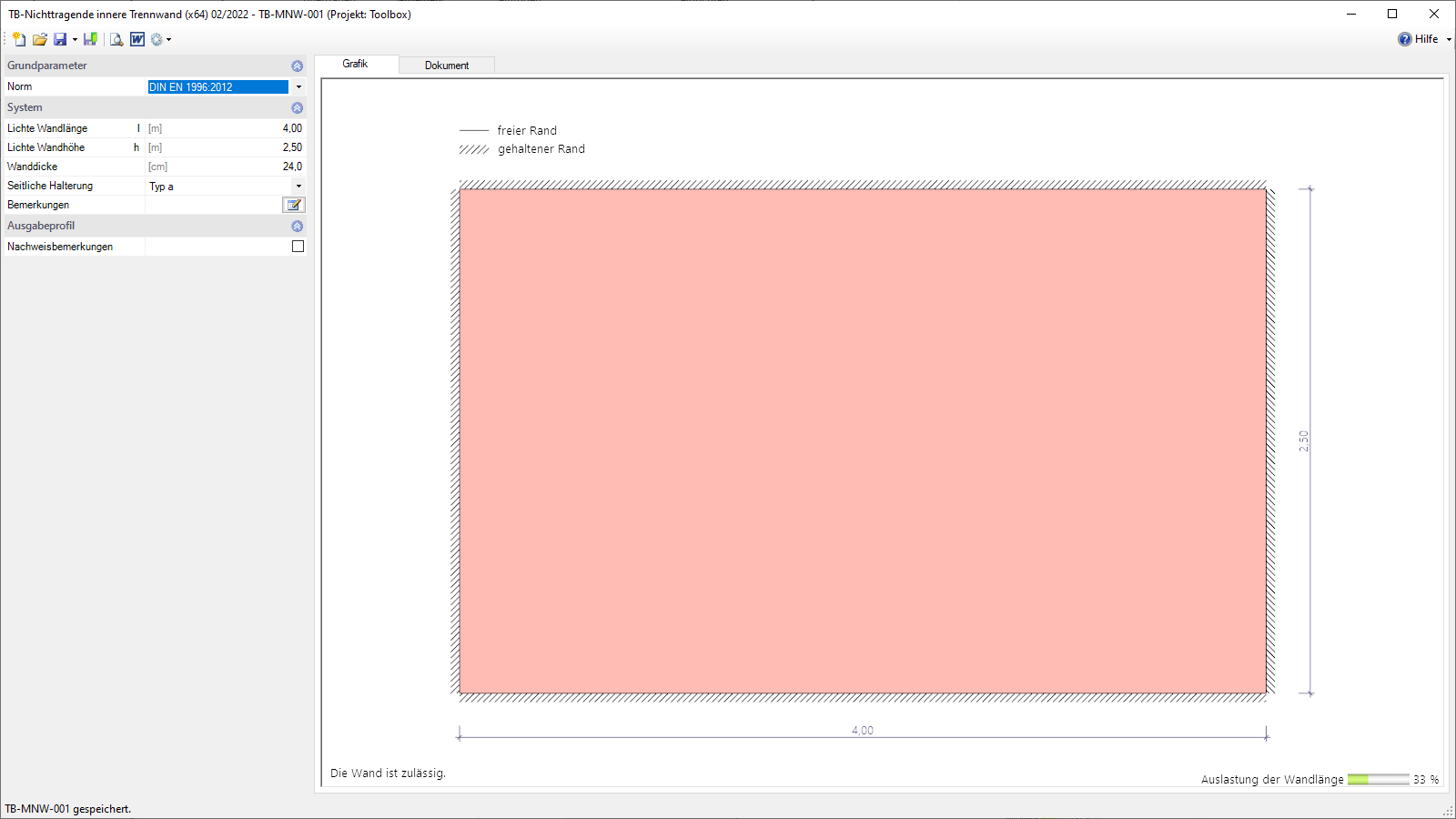

Die Programmfläche

Nichttragende innere Trennwand

TB-MNW

Das Modul TB-MNW kann der Nachweis mit der vereinfachten Berechnungsmethode für vertikal nicht beanspruchte Innenwände mit begrenzter horizontaler Belastung führen.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Mit diesem Modul kann der Nachweis mit der vereinfachten Berechnungsmethode für vertikal nicht beanspruchte Innenwände mit begrenzter horizontaler Belastung geführt werden.

Nachweis der größten zulässigen Wandlänge

Dieser Nachweis bezieht sich auf Bereiche mit geringer Menschenansammlung, in denen eine horizontale Nutzlast von 0,5 kN/m nach DIN EN 1991-1-1/NA:2010-12, Tabelle 6.12DE, Zeile 1 nicht überschritten wird, vorausgesetzt, dass Vollsteine und Lochsteine nach DIN EN 1996-1-1/NA:2012-01, NCI zu 3.1.1, (NA.5) zur Anwendung kommen.

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1996

Hilfsmittel

Handbuch

Handbuch
