Die Programmoberfläche

Sparrenauflager

TB-HSA

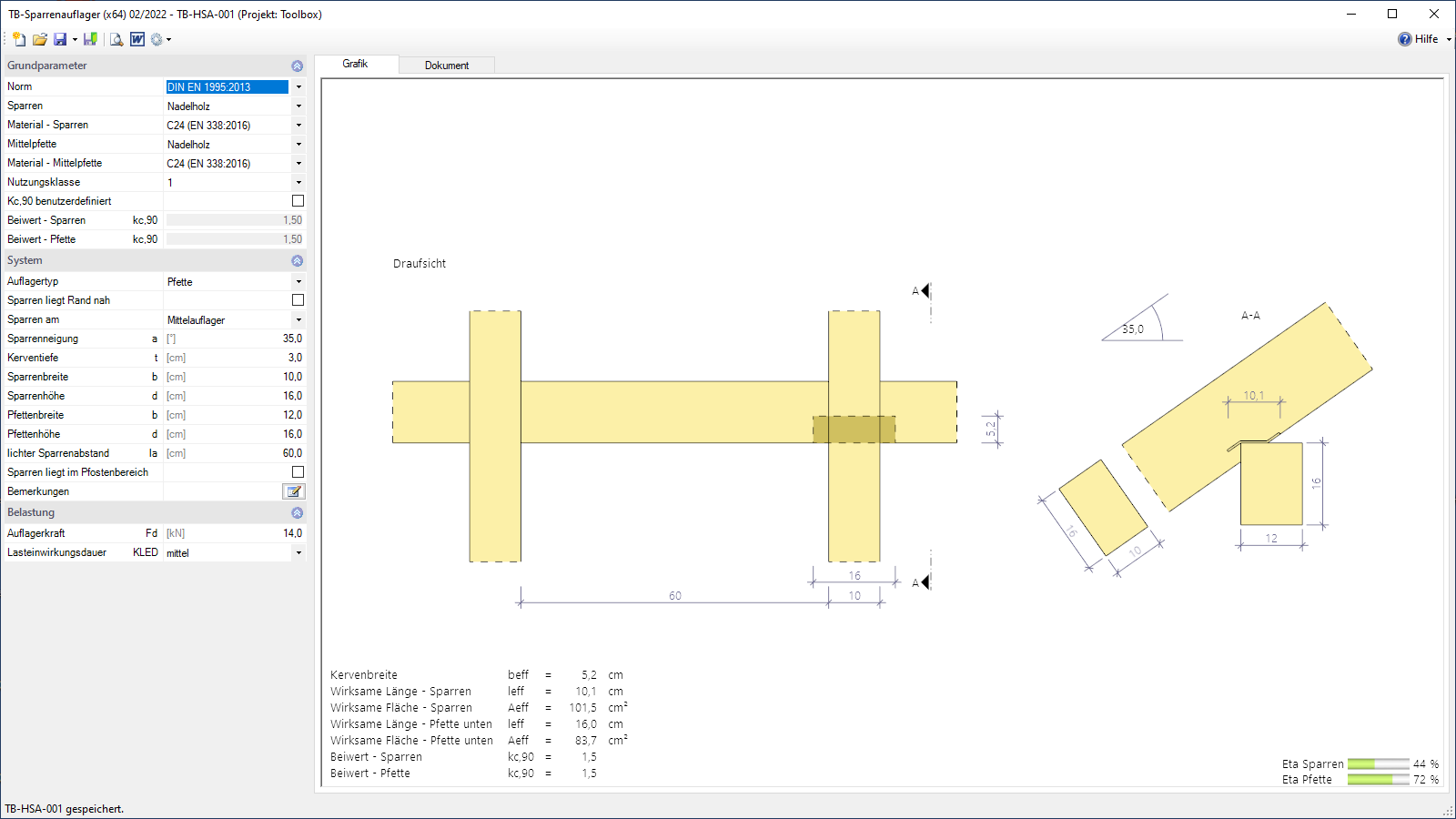

Das Modul TB-HSA kann die Nachweise der Auflagerpressung eines Sparrens abhängig von den Laststellungen, der Geometrie und dem Material führen.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Berechnung von k_c90
Berechnung von k_mod und Querdruckfestigkeit f_c,90,d parallel zur Faser f_c,0,d
Berechnung der jeweiligen resultierenden Auflagerflächen A_eff bei Sparren und Pfette bzw. Schwelle
Spannungsnachweis für die Pressung σ_d bei Sparren und Pfette bzw. Schwelle
Der Nachweis der Pressung erfolgt auf der Sparrenseite unter der Berücksichtigung von l_ef .

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

DIN EN 1995
ÖNORM EN 1995

Hilfsmittel

Handbuch

Handbuch
