Näherung Bodenplattenbemessung

TB-GNB

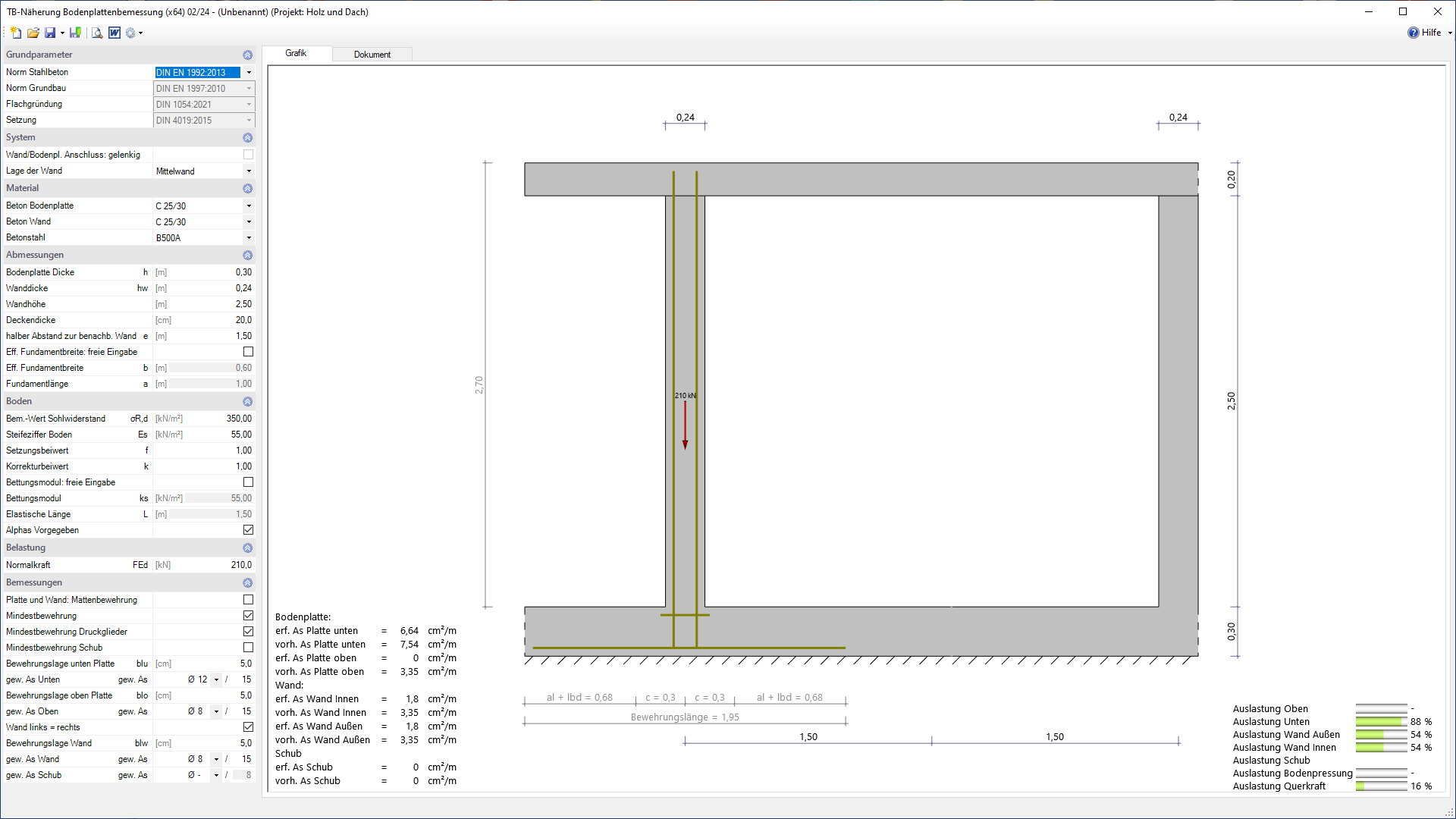

Mit dem Modul TB-GNB können Bodenplatten unter Linienlasten bei üblichen Hochbauten ohne Auftriebswirkung näherungsweise bemessen werden.

Bemessung Ausgabemöglichkeiten Normen

Jetzt mehr Programme aus dem Bereich Toolboxen entdecken!

Einzelberechnungen

Ermittlung der elastischen Länge
Bemessungsschnittkräfte
erforderliche Zug- und Schubbewehrung

Dateiformate

PDF
Word
Drucker

Ausgabe

Standardausgabe

Normen

Grundlage für die Berechnung ist die Technische Mitteilung SG 02/05 des VPI NRW vom Oktober 2012
basierend auf DIN EN 1992-1-1 mit deutschem NA und DIN EN 1997-1-1 mit DIN 4019-1: 1979-04.
